Assembly (1)

Drive each differential side oil seal evenly using Tools (Transaxle case side) and suitable tool (Convertor housing side) so that differential side oil seal protrudes by the dimension (C) or (D) respectively.

Tool numbers : ST35325000 (-)

: KV31103000 (J-38982)

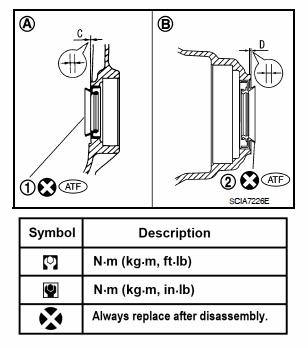

Fig 1: Identifying Oil Seal Clearance

Courtesy of NISSAN MOTOR CO., U.S.A.

MODEL SPECIFICATION

Unit: mm (in)
Applied model	HR16DE engine	MR18DE engine
Dimension (C)	0 ± 0.5 (0 ± 0.020)	0 ± 0.5 (0 ± 0.020)
Dimension (D)	1.1 ± 0.5 (0.043 ± 0.020)	6 ± 0.5 (0.24 ± 0.020)

NOTE: Differential side oil seal pulling direction is used as the reference.

Install O-ring on governor cap.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Install governor cap in transaxle case.
Install snap ring in transaxle case.
Install parking actuator support (1) on transaxle case.
1. Inside
2. Outside
  CAUTION: Be careful with the direction of parking actuator support (1).
Tighten parking actuator support bolts to the specified torque. Refer to "COMPONENT ".

Fig 2: Identifying Parking Actuator Support
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl (2) on transaxle case, and fix it with parking shaft (1).

Fig 3: Identifying Parking Pawl, Transaxle Case And Parking Shaft
Courtesy of NISSAN MOTOR CO., U.S.A.
Install return spring (2) on parking shaft (3) and parking pawl (1) using a suitable tool.

Fig 4: Identifying Return Spring, Parking Shaft And Parking Pawl
