MR18DE Engine Models

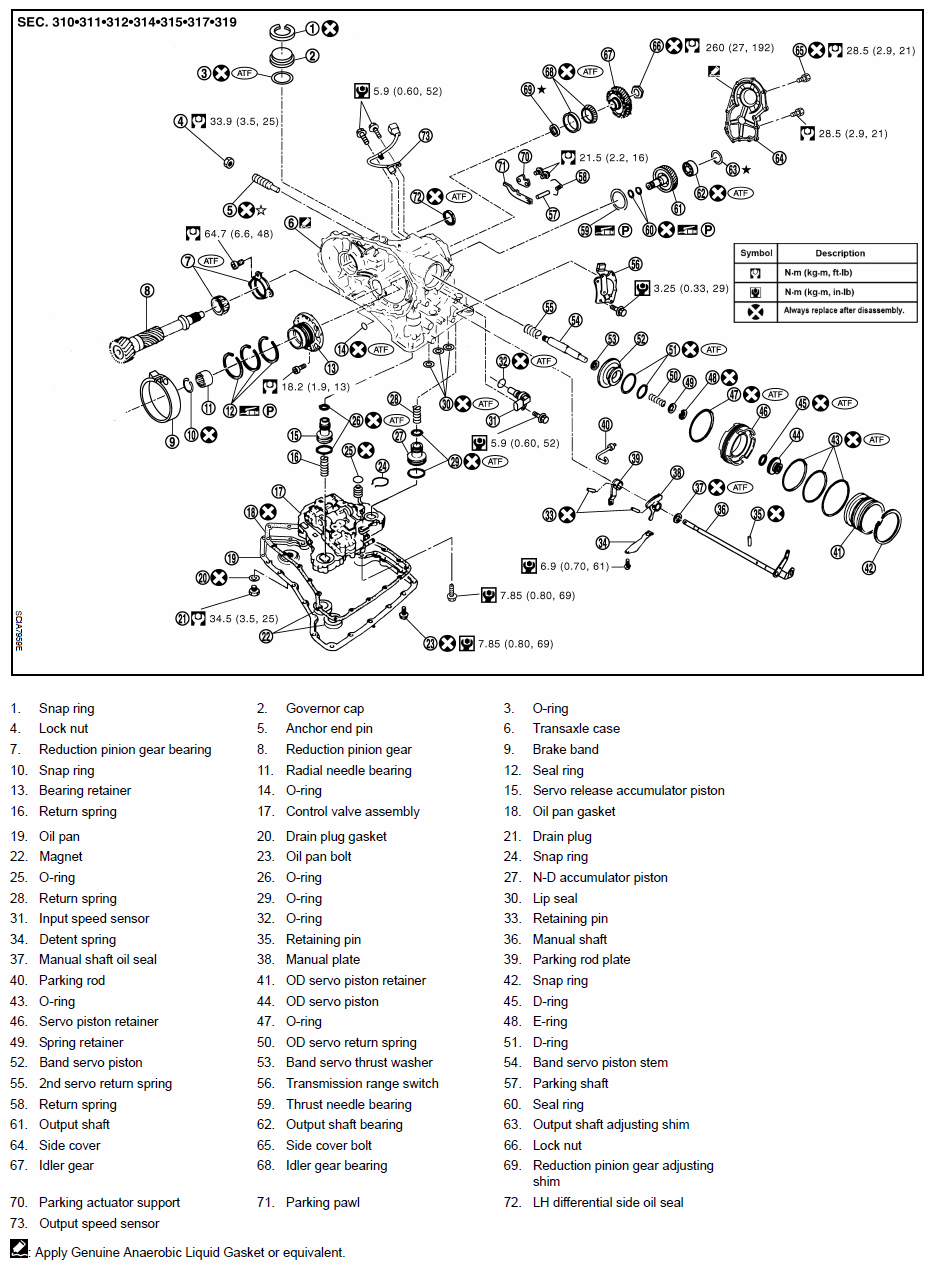

Fig 1: Exploded View Of Transaxle Assembly Components With Torque Specifications - MR18DE Engine Models (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

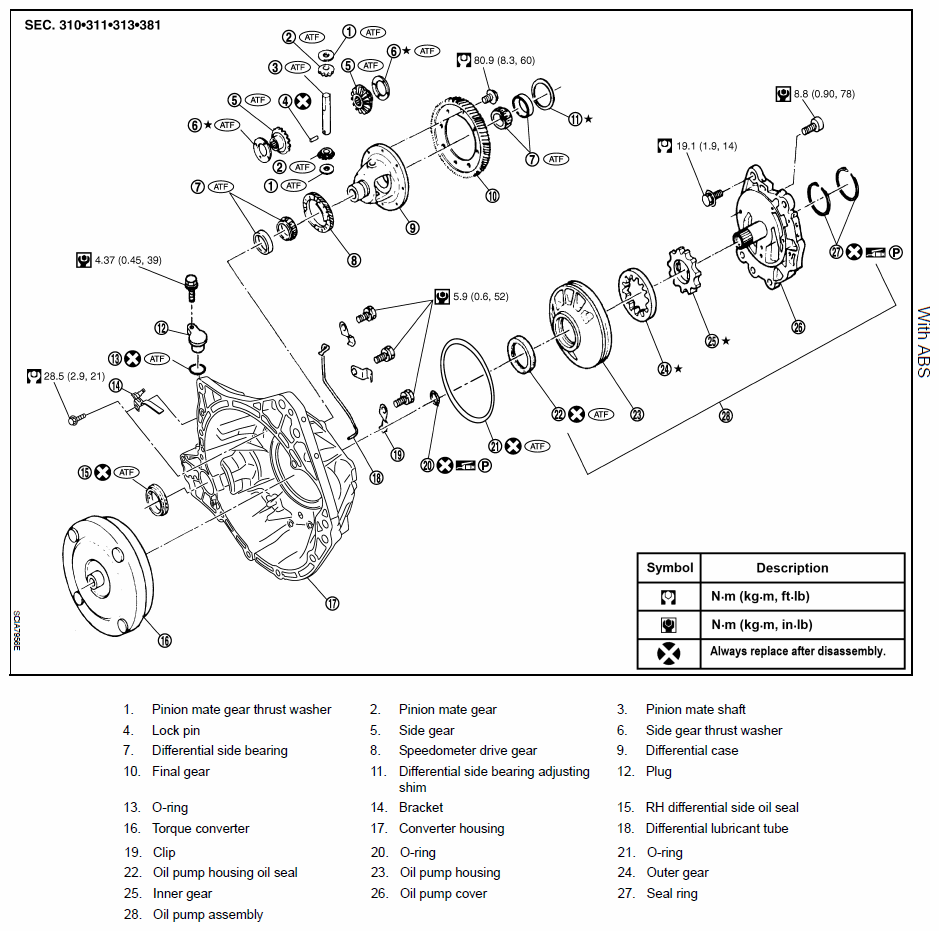

Fig 2: Exploded View Of Transaxle Assembly Components With Torque Specifications - MR18DE Engine Models (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

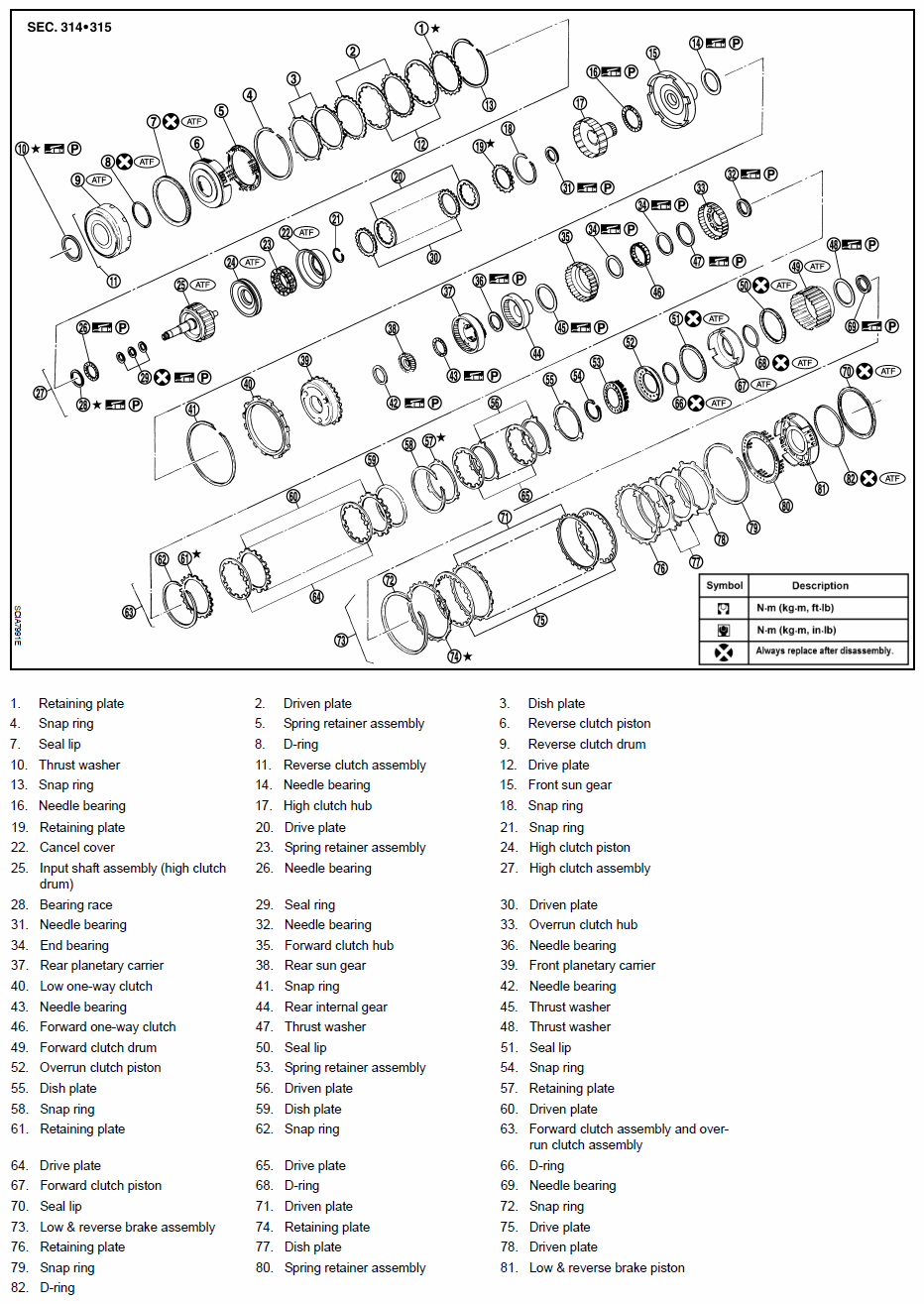

Fig 3: Exploded View Of Transaxle Assembly Components - MR18DE Engine Models (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

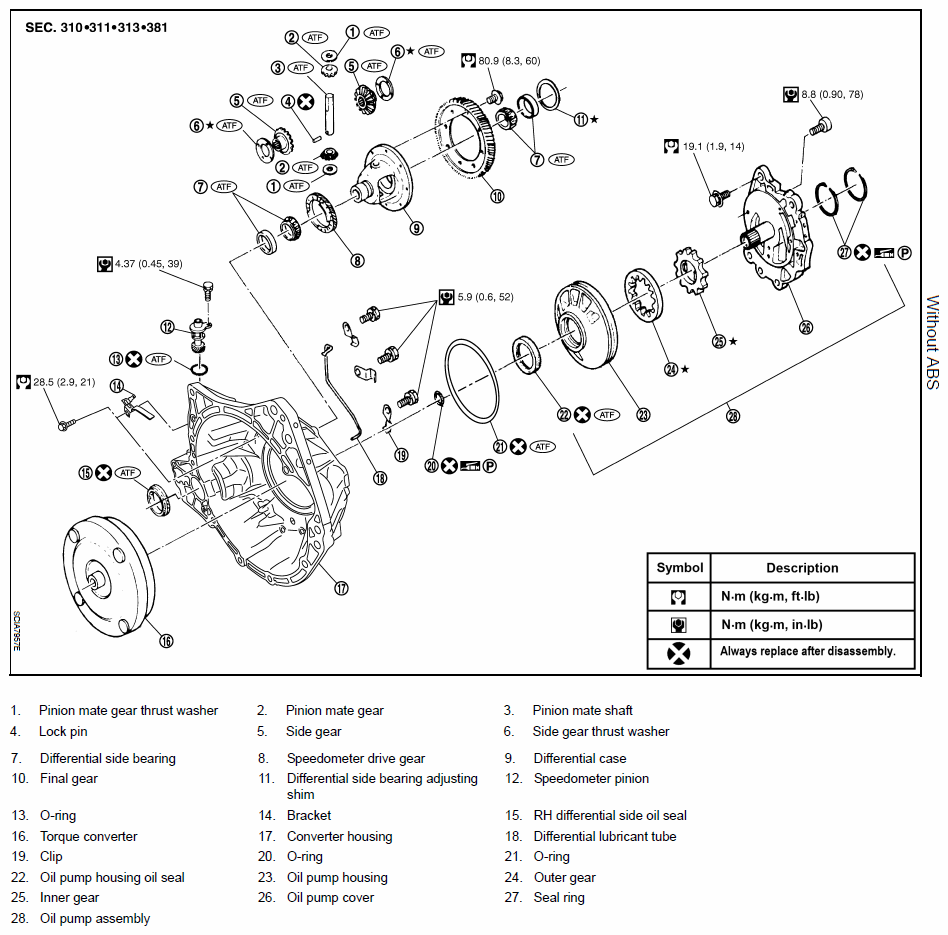

Fig 4: Exploded View Of Transaxle Assembly Components With Torque Specifications - MR18DE Engine Models (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
