Section 2 (CVT)
›
Service Information
›
CVT System
›
Control System
Control System
WARNING:
This page is about a different variant/trim than selected.

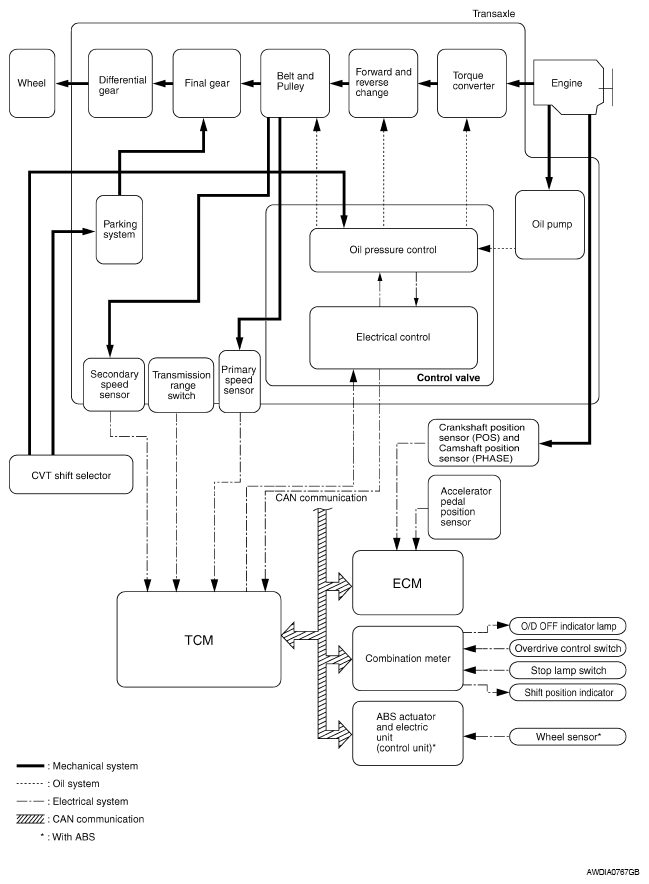

Fig 1: CVT Control System Flow Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
