Lock-up and Select Control System Diagram
Lock-up and Select Control System Diagram
WARNING:
This page is about a different variant/trim than selected.

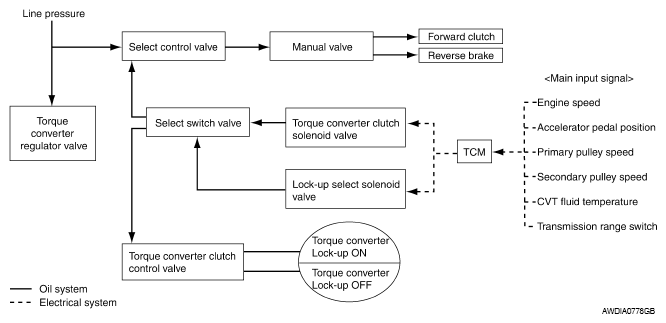

Fig 1: Lock-up And Select Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
