Section 2 (CVT)
›
Service Information
›
Primary Speed Sensor
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

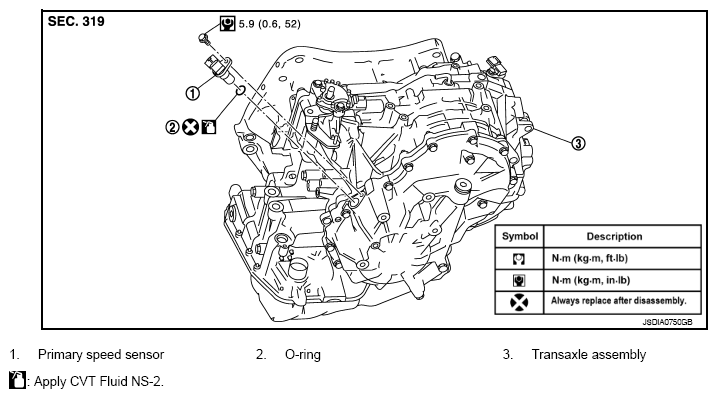

Fig 1: Exploded View Of Primary Speed Sensor Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
