Control Cable Components

WARNING: This page is about a different variant/trim than selected.

Refer to the figure below for control cable removal and installation procedure.

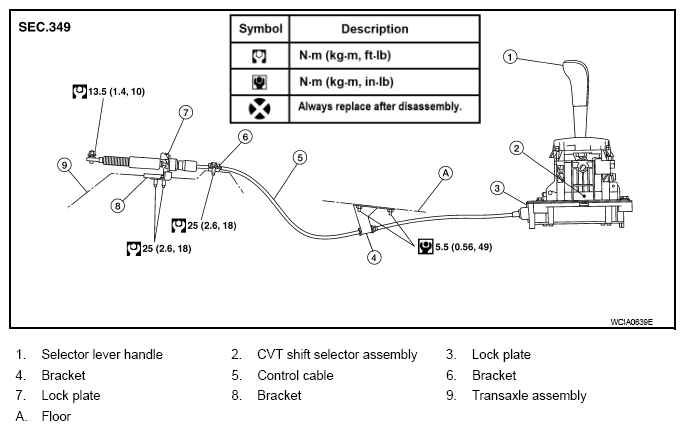

Fig 1: Locations Of Control Cable Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
