Removal and Installation: Components

WARNING: This page is about a different variant/trim than selected.

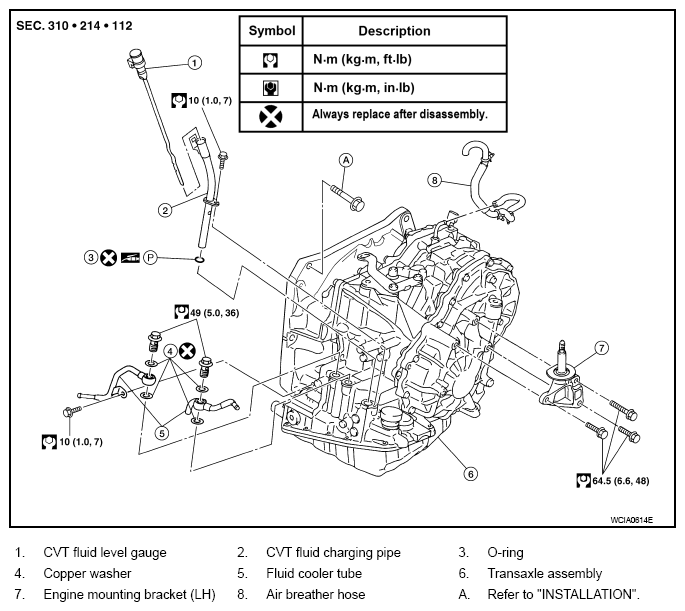

Fig 1: Location Of Transaxle Assembly Components
G06547886Courtesy of NISSAN MOTOR CO., U.S.A.
