370Z Base, 2D Convertible, Standard Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System
›
Removal And Installation
›
Door Regulator
›
Exploded View
Exploded View

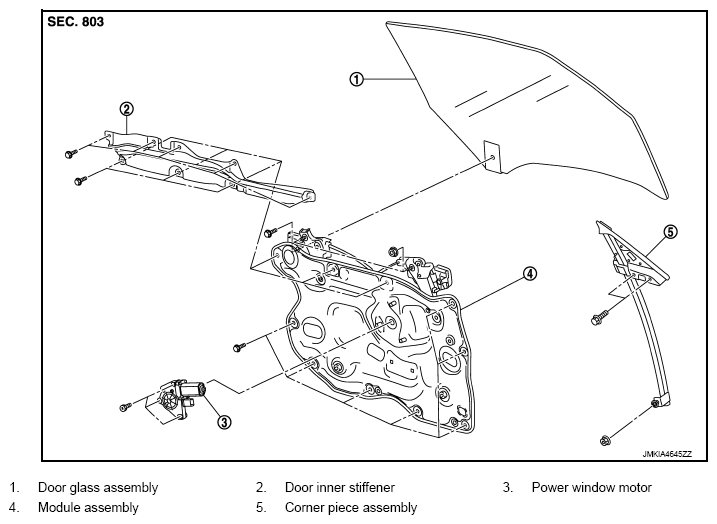

Fig 1: Exploded View Of Door Regulator Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
