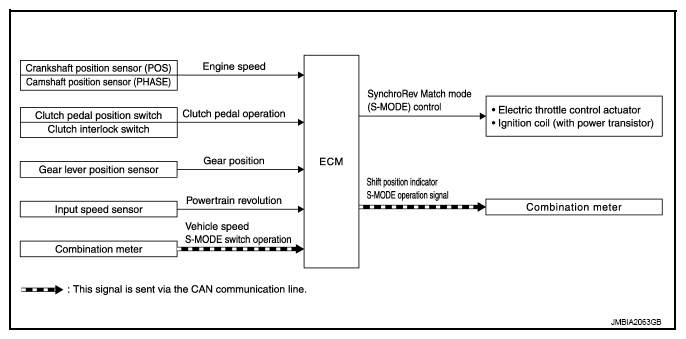

Home › Nissan-Datsun › 2012 › 370Z Base, 2D Convertible, Standard Trans › Repair and Diagnosis › Engine Performance › System › Engine Control System - Introduction › System Description › SYNCHROREV Match Mode (S-Mode) › System Diagram
