Nissan-Datsun
›
2012
›
370Z Base, 2D Convertible, Standard Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - System And Component Testing
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Engine Mechanical & Other
System - Engine Mechanical & Other

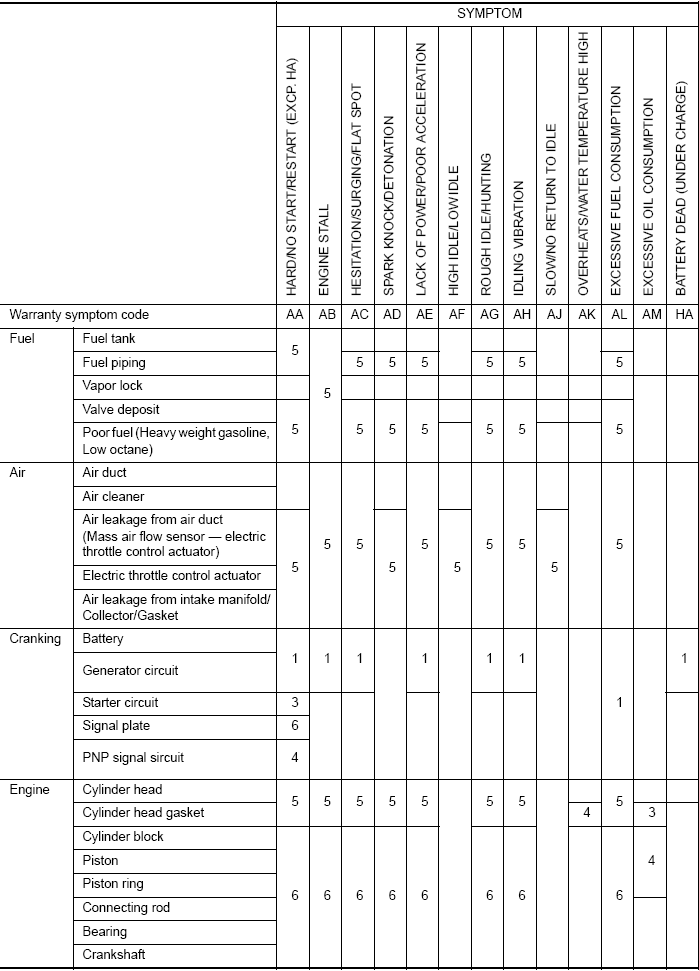

Fig 1: Identifying Engine Control System Symptom Chart
Courtesy of NISSAN NORTH AMERICA, INC.

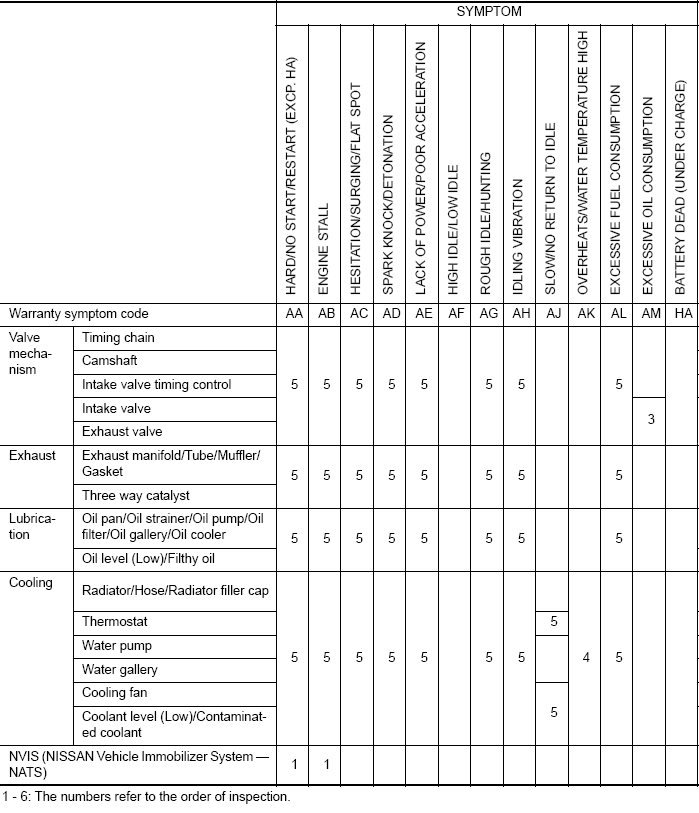

Fig 2: Identifying Engine Control System Symptom Chart
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
