IPDM E/R Relays

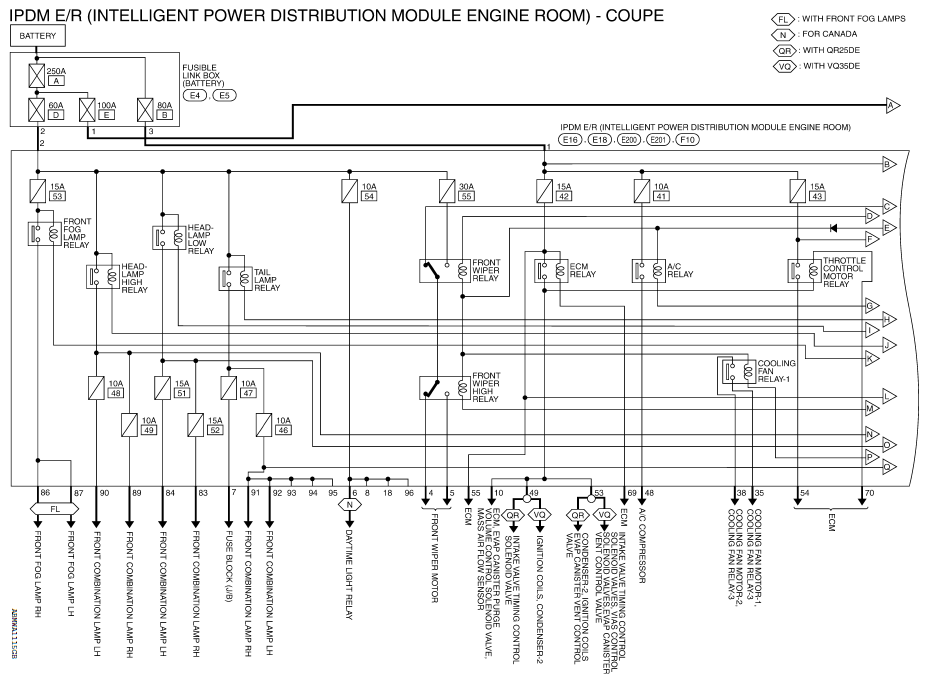

Fig 1: IPDM E/R Relays (Coupe) (1 Of 2)
G07001214Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R (COUPE) RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Lamp Relay
Headlamp High Relay
Headlamp Low Relay
Tail Lamp Relay
Front Wiper Relay
A/C Relay
Cooling Fan Relay - 1
Front Wiper High Relay
Throttle Control Motor Relay
ECM Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

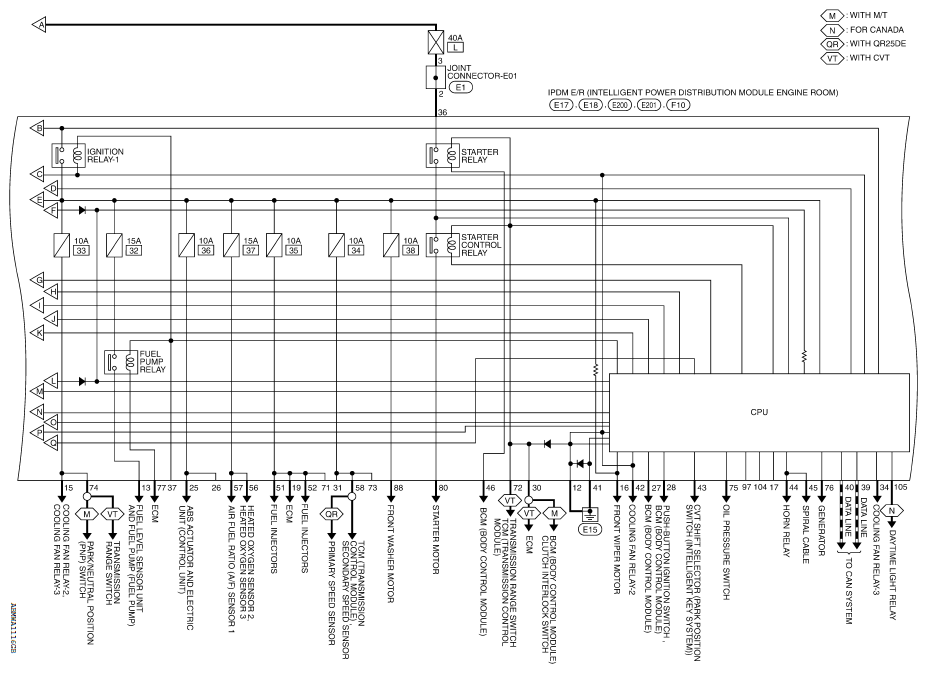

Fig 2: IPDM E/R Relays (Coupe) (2 Of 2)
G07001215Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R (COUPE) RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Starter Relay
Starter Control Relay
Fuel Pump Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

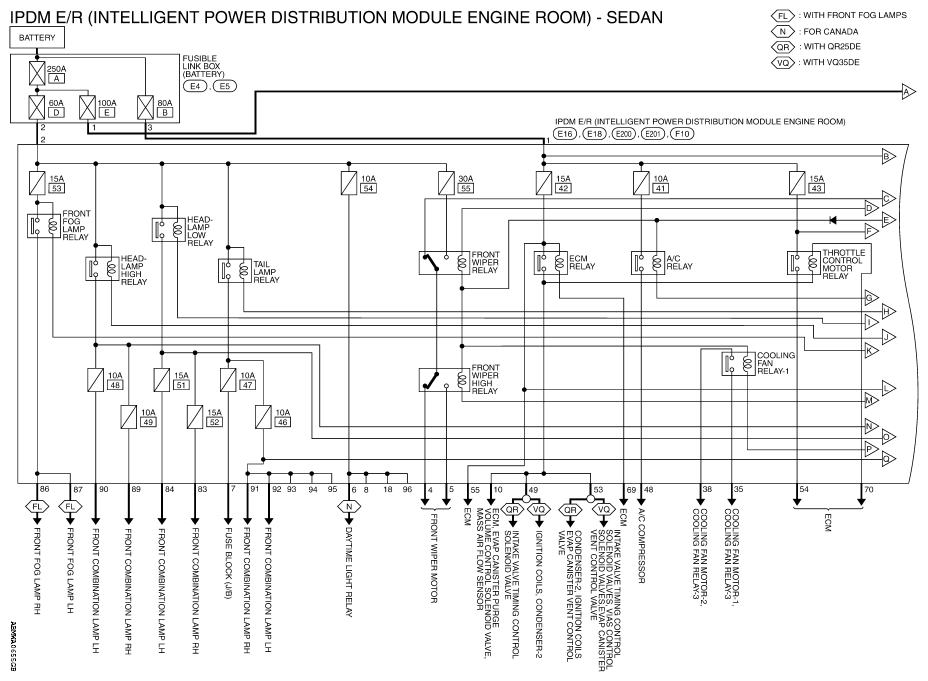

Fig 3: IPDM E/R Relays (Sedan) (1 Of 2)
G06560864Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R (SEDAN) RELAY IDENTIFICATION

RELAY DESCRIPTION
Front Fog Lamp Relay
Headlamp High Relay
Headlamp Low Relay
Tail Lamp Relay
Front Wiper Relay
ECM Relay
A/C Relay
Throttle Control Motor Relay
Cooling Fan Relay - 1
Front Wiper High Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.

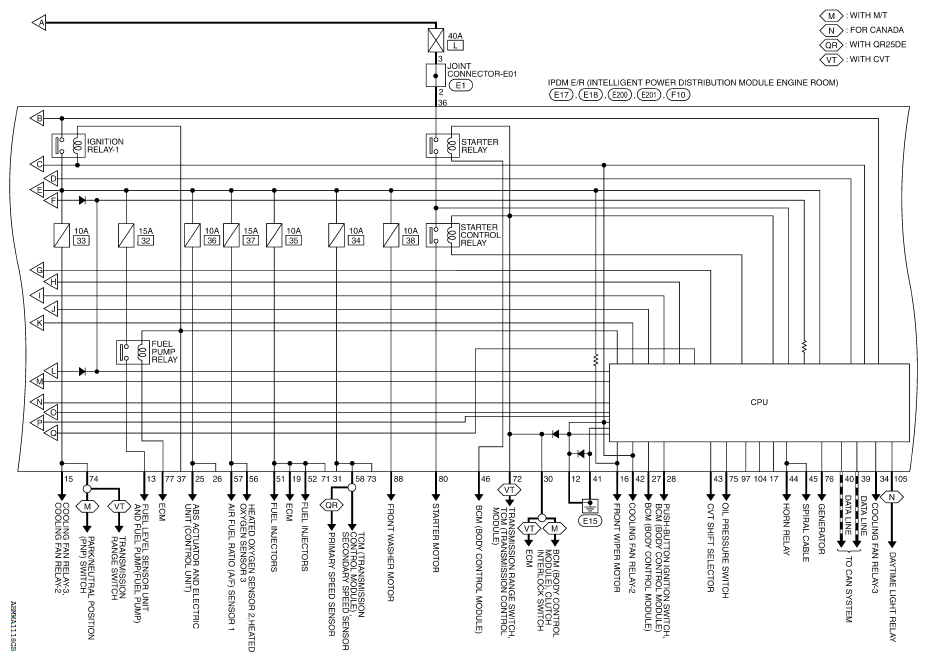

Fig 4: IPDM E/R Relays (Sedan) (2 Of 2)
G07001221Courtesy of NISSAN NORTH AMERICA, INC.
IPDM E/R (SEDAN) RELAY IDENTIFICATION

RELAY DESCRIPTION
Ignition Relay
Starter Relay
Starter Control Relay
Fuel Pump Relay
CAUTION: IPDM E/R Integrated Relays Cannot Be Removed.
