Section 17 (Engine Control System - Introduction (VQ35DE))
›
System Description
›
Automatic Speed Control Device (ASCD)
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

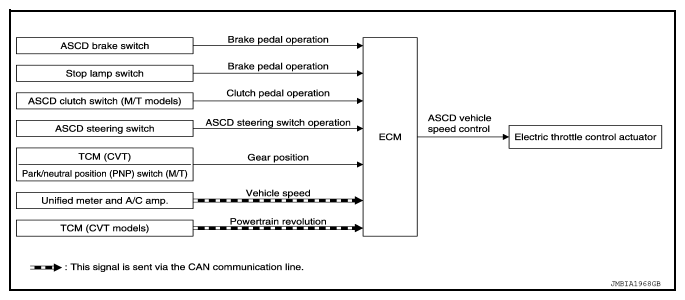

Fig 1: Automatic Speed Control Device Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
