Component Parts Location

WARNING: This page is about a different variant/trim than selected.

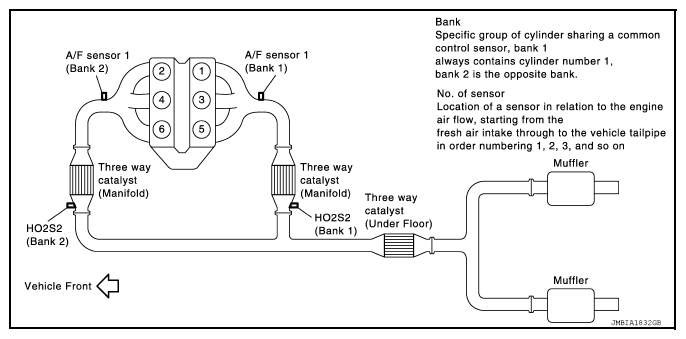

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

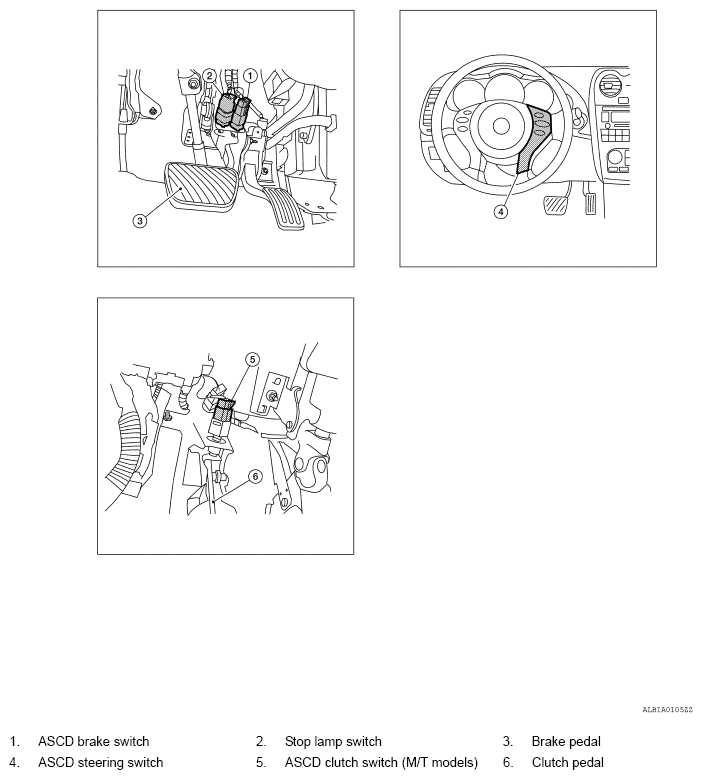

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

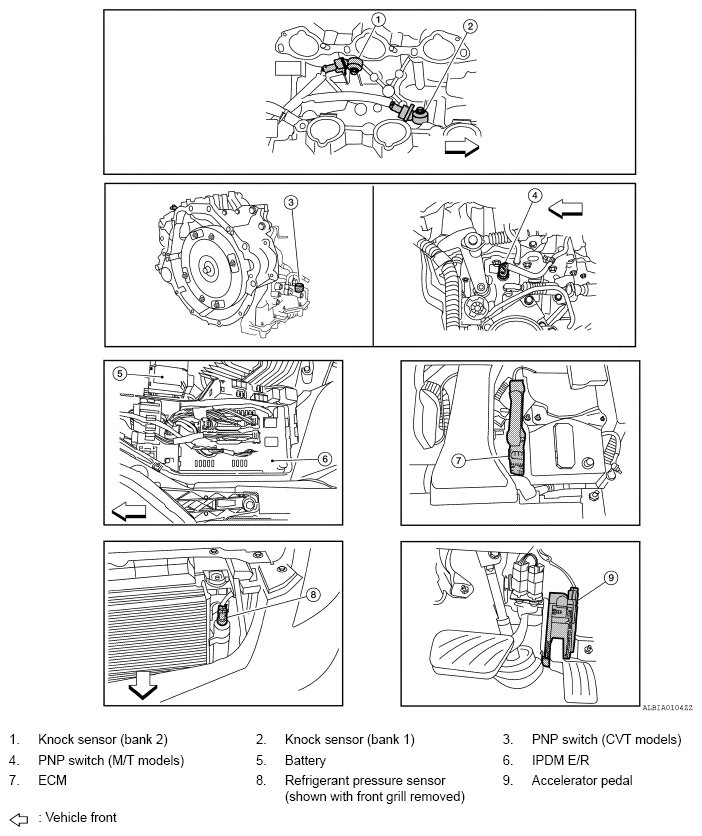

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

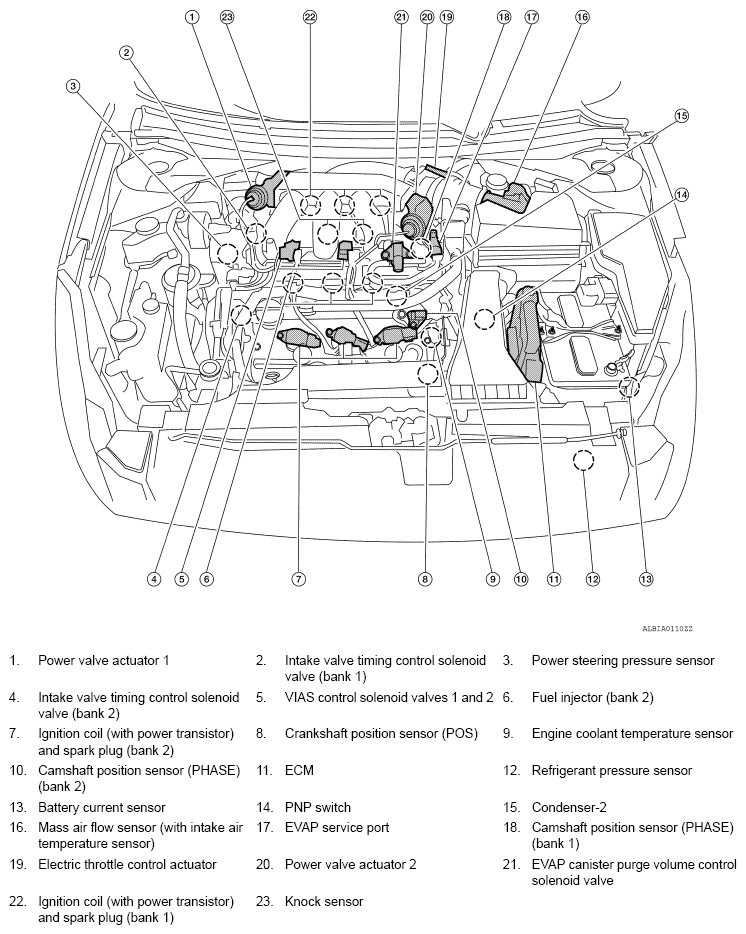

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

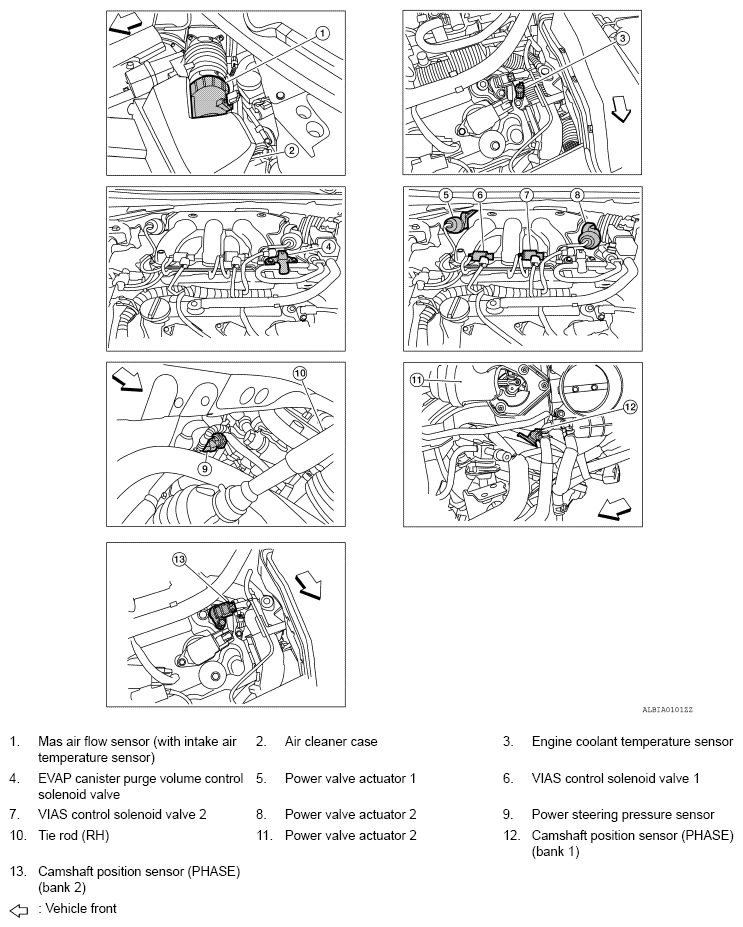

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

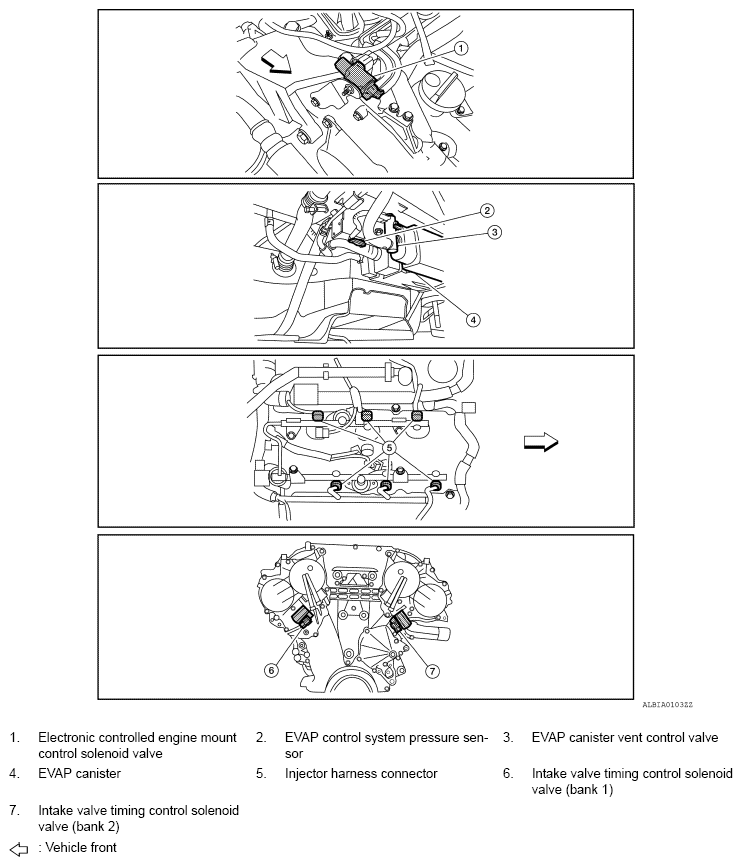

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
