System - Basic Engine Control System
System - Basic Engine Control System
WARNING:
This page is about a different variant/trim than selected.

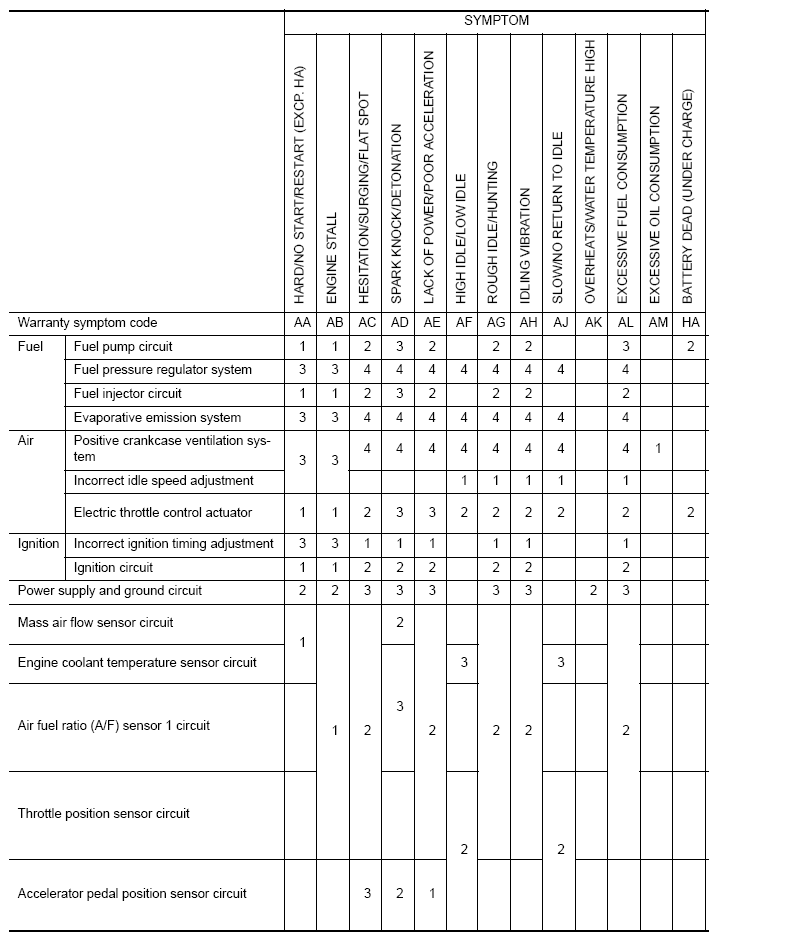

Fig 1: Basic Engine Control System - Symptom Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

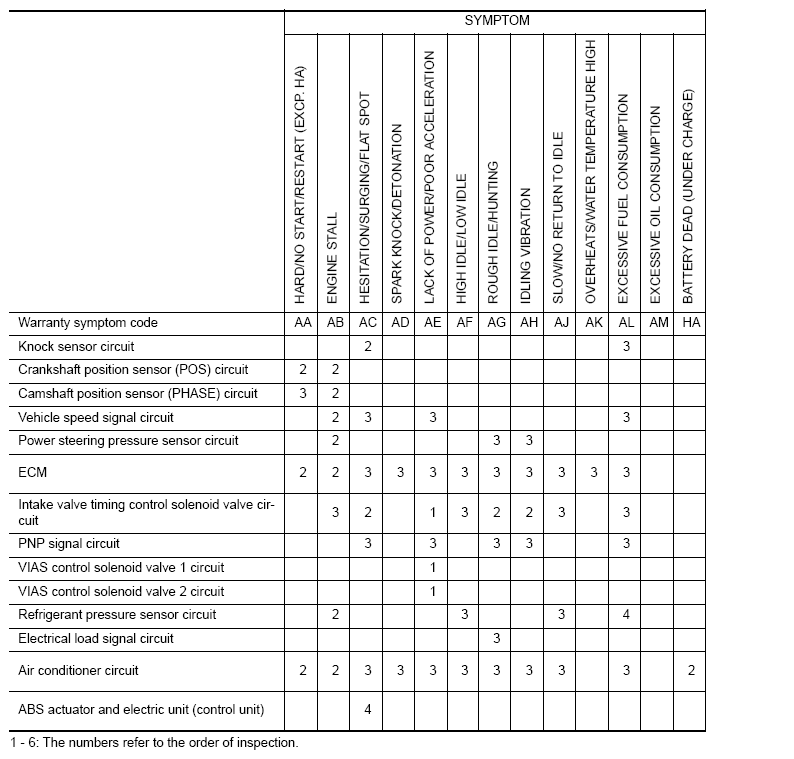

Fig 2: Basic Engine Control System - Symptom Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
