Front Suspension
›
Unit Removal And Installation
›
Front Suspension Assembly
›
Exploded View
Exploded View

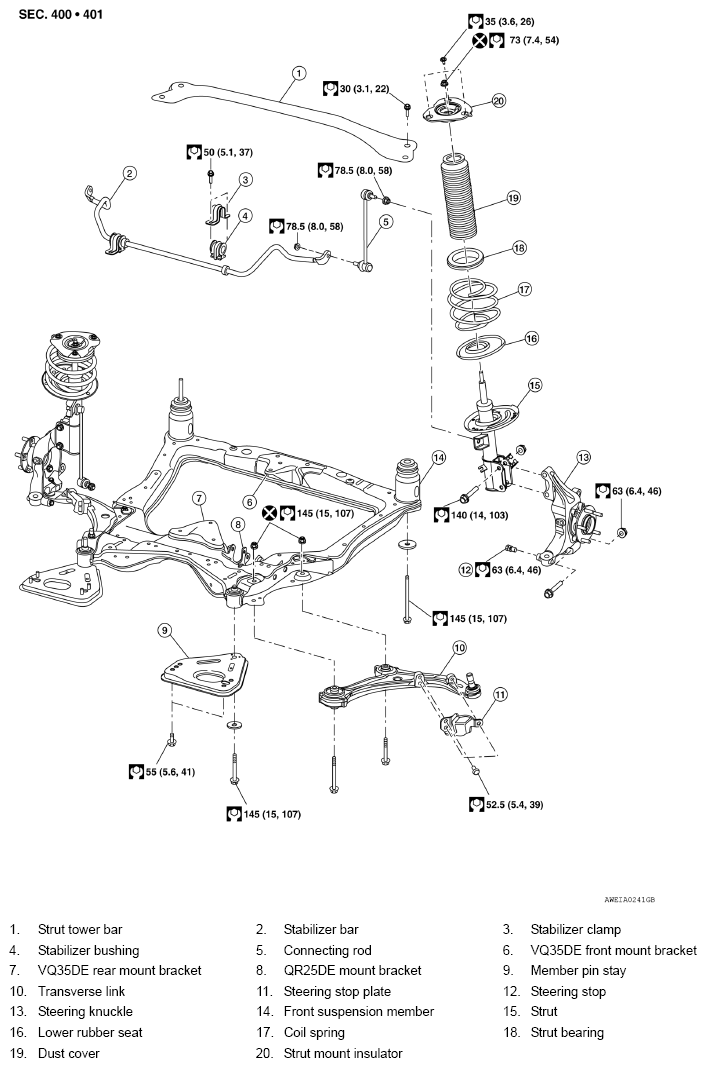

Fig 1: Exploded View Of Front Suspension Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
