Front Regulator: Components

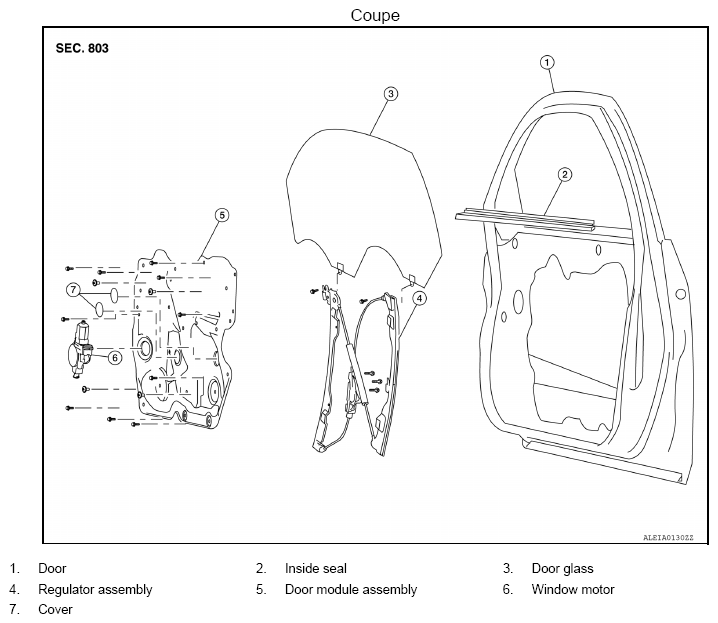

Fig 1: Identifying Front Regulator Components - Coupe
Courtesy of NISSAN NORTH AMERICA, INC.

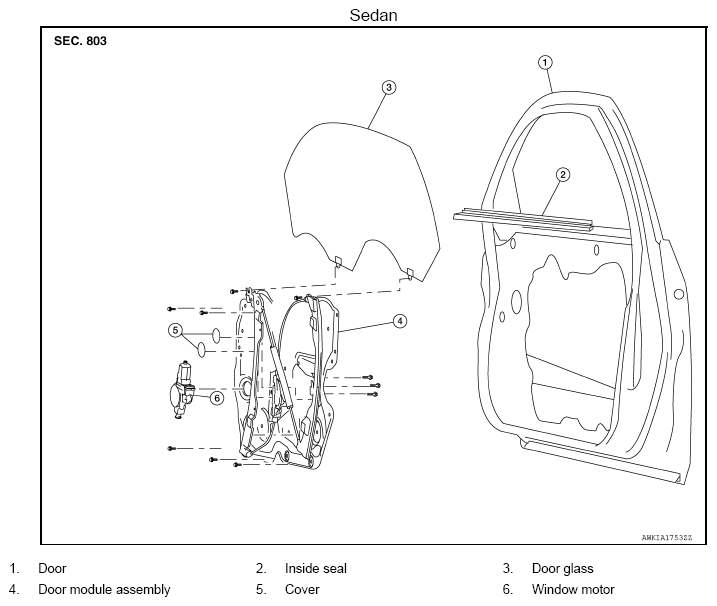

Fig 2: Identifying Front Regulator Components - Sedan
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
