Windshield Glass
›
Components
Windshield Glass: Components

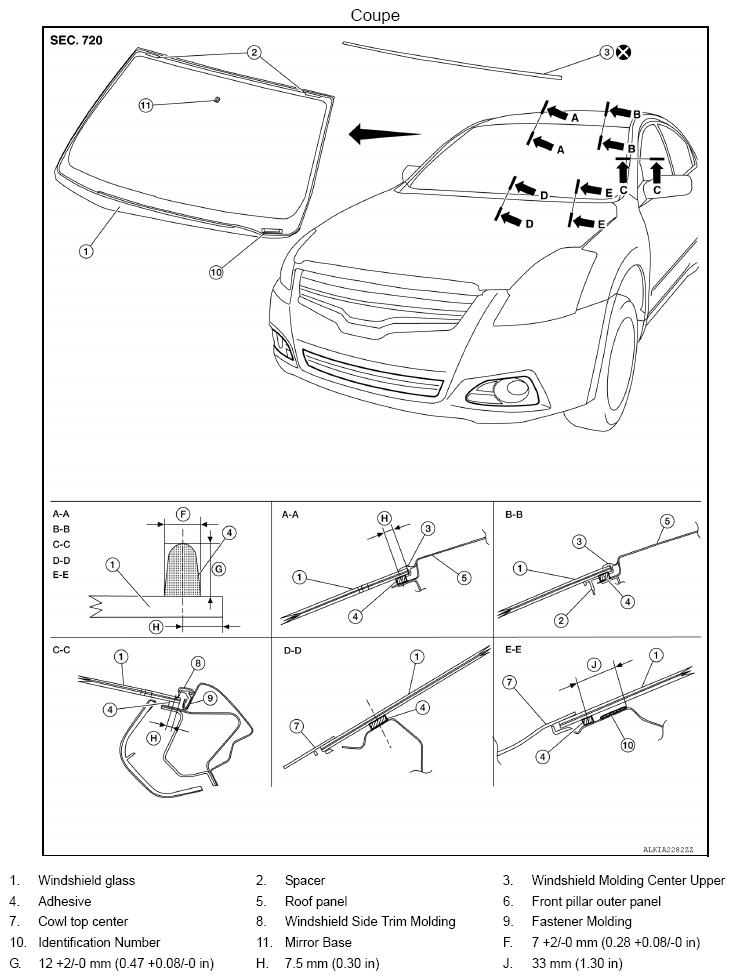

Fig 1: Identifying Windshield Glass Components - Coupe
Courtesy of NISSAN NORTH AMERICA, INC.

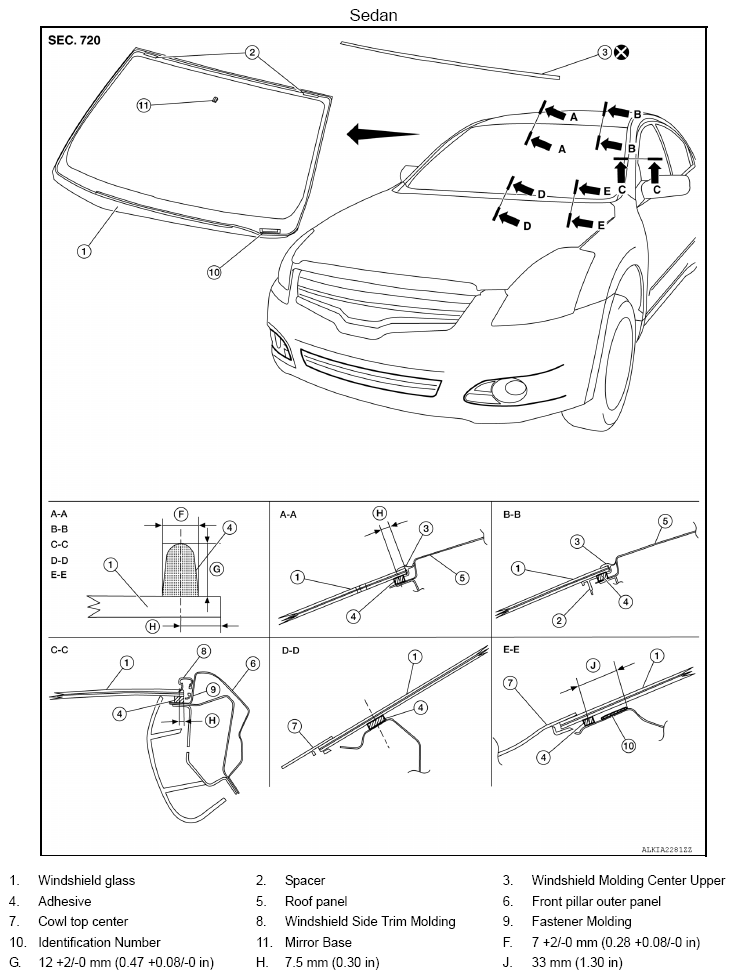

Fig 2: Identifying Windshield Glass Components - Sedan
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
