Altima SL
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belts
›
Removal And Installation
›
Front Seat Belt
›
Exploded View
Exploded View

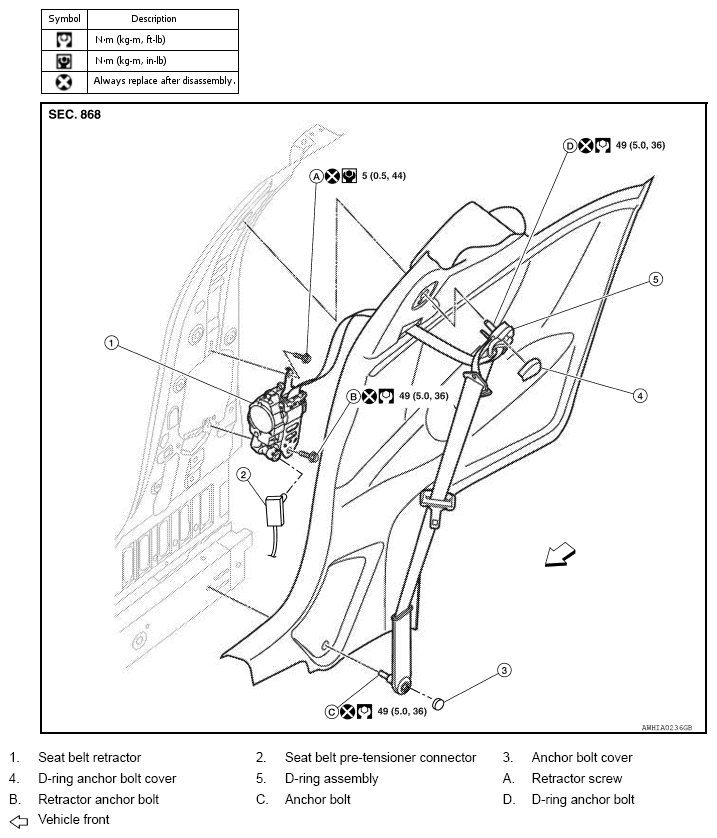

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications (Sedan Models)
Courtesy of NISSAN NORTH AMERICA, INC.

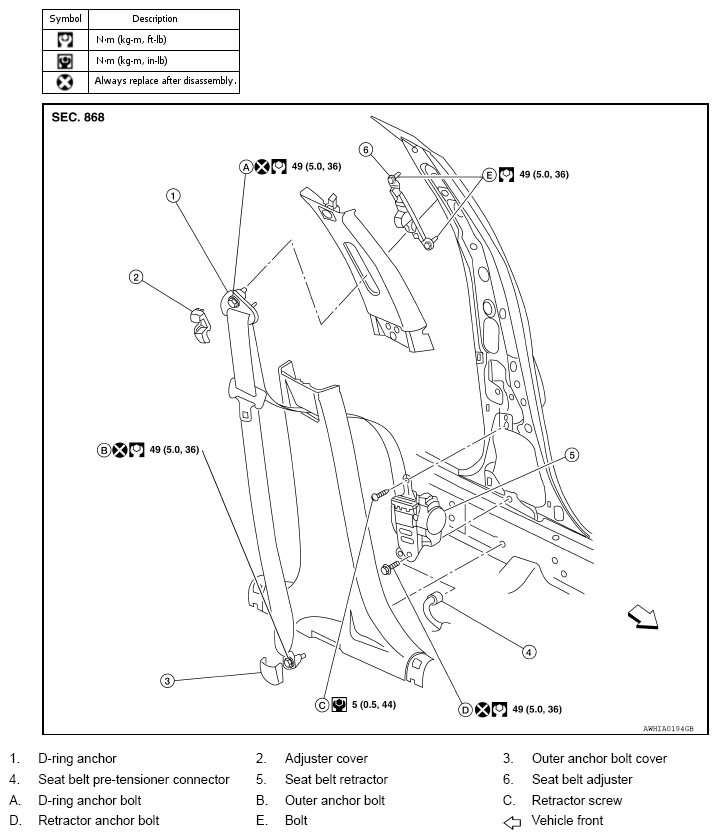

Fig 2: Exploded View Of Front Seat Belt With Torque Specifications (Coupe Models)
Courtesy of NISSAN NORTH AMERICA, INC.
