Reference Value
›
Terminal Layout
Terminal Layout

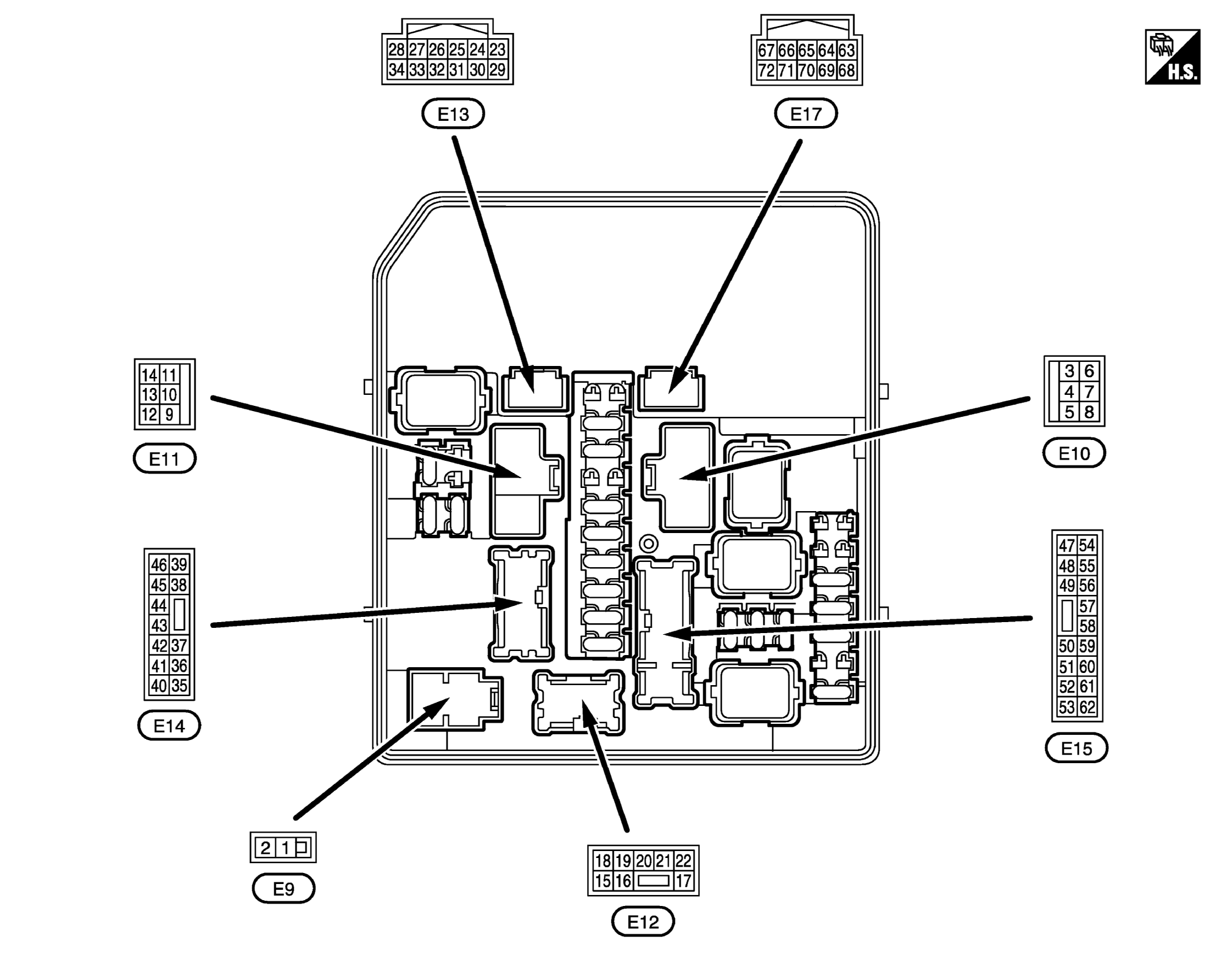

Fig 1: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
