Removal and Installation: Removal

  1. Remove the switch panel finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the push-ignition switch (2) fixing pawl using a flat-blade screwdriver (A), and then remove NATS antenna amp..

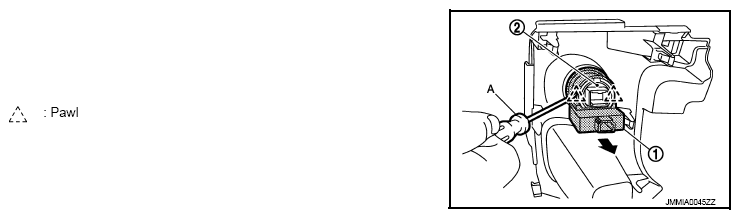

    Fig 1: Removing NATS Antenna Amp. & Ignition Switch
    G08129211Courtesy of NISSAN NORTH AMERICA, INC.
