Engine Control System - Component Testing (Except CALIFORNIA)
›
Symptom Diagnosis
›
Engine Control System Symptoms
›
Symptom Table
›
System - Basic Engine Control System
System - Basic Engine Control System

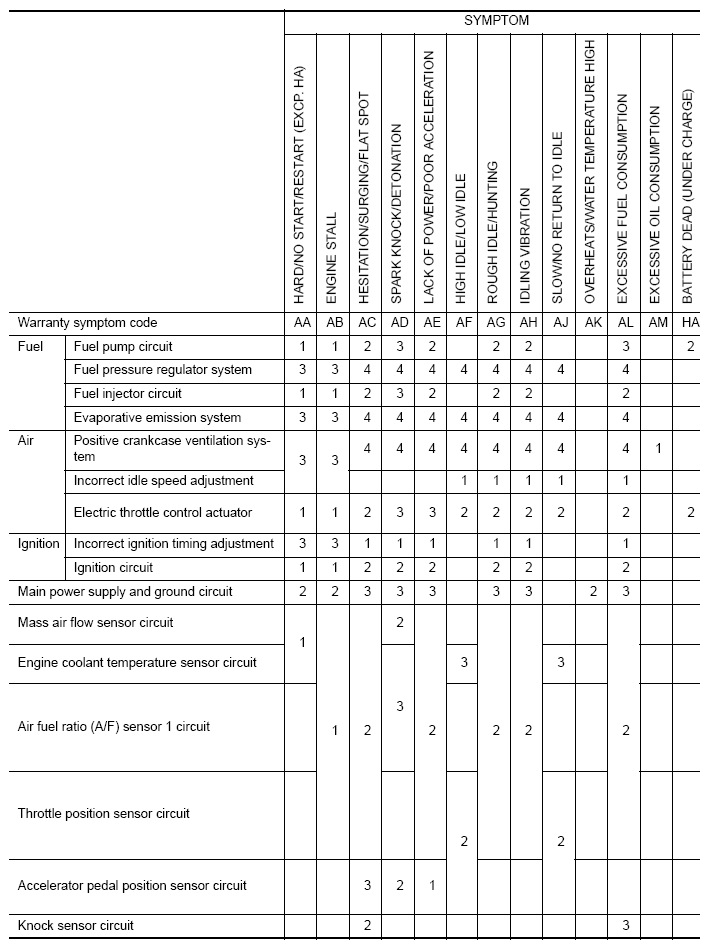

Fig 1: Identifying Basic Engine Control System Symptoms Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

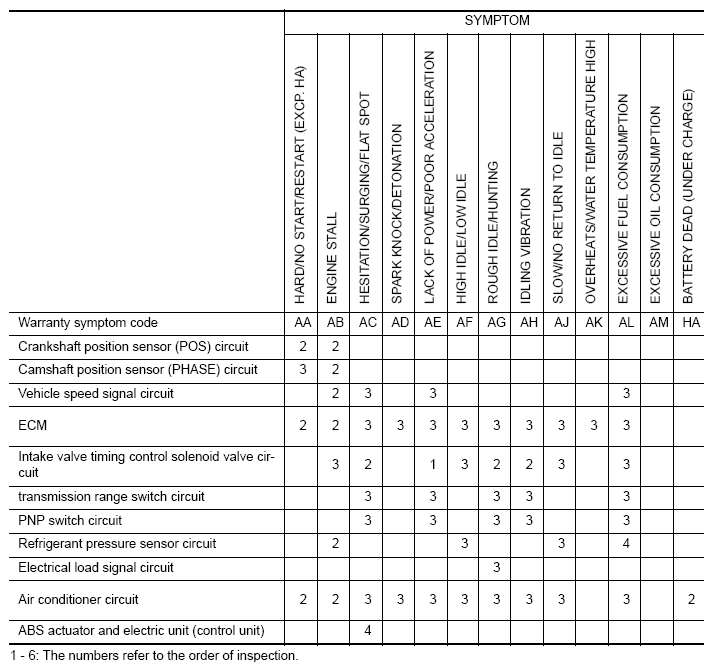

Fig 2: Identifying Basic Engine Control System Symptoms Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
