Headlight Leveling Motor Replacement: Removal

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlight assembly (see WITH HEADLIGHT LEVELING SYSTEM ).
Slightly pull the headlight leveling motor (A) back so that its projection (B) clears the stopper (C), and then rotate the motor 45° counterclockwise.

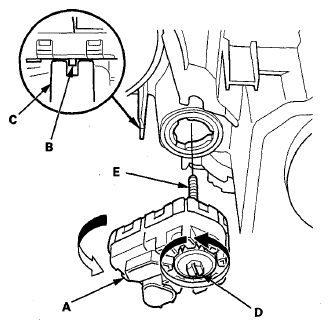

Fig 1: Rotating Motor 45 Degrees Counterclockwise
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the adjuster (D) of the headlight leveling motor until the headlight leveling motor shaft (E) is removed from the headlight.
