A/C Condenser Replacement

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant with a recovery/recycling/charging station (see REFRIGERANT RECOVERY ).
Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the bolt, then disconnect the discharge hose (A) from the A/C condenser. Remove the O-ring (B).

Fig 1: Locating Bolt, Discharge Hose And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt, then disconnect the front receiver line (A) from the A/C condenser. Remove the O-ring (B).

Fig 2: Locating Bolt, Front Receiver Line And O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Without ACC: Remove the bolts, nut, and the ATF cooler bracket (A).

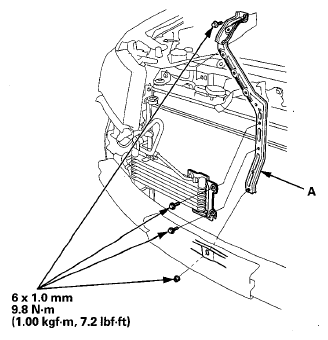

Fig 3: Locating Bolts, Nut, And ATF Cooler Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With ACC: Disconnect the 5P connector (A) from the millimeter wave radar (B), then detach the harness clips (C). Remove the bolts, nuts, and the millimeter wave radar bracket (D).

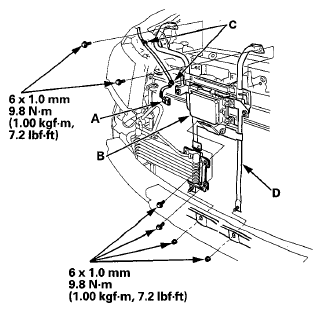

Fig 4: Locating 5P Connector, Millimeter Wave Radar, Harness Clips, Bolts, Nuts And Millimeter Wave Radar Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosen the bolts, then remove the A/C condenser upper mount brackets (A).

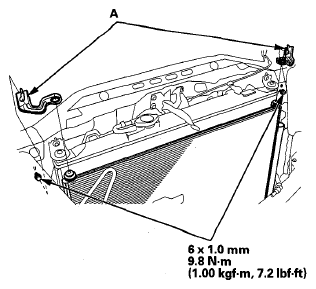

Fig 5: Locating Bolts And A/C Condenser Upper Mount Brackets
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hood latch (see HOOD LATCH REPLACEMENT ).
Remove the A/C condenser (A) by lifting it up. Be careful not to damage the radiator and A/C condenser fins when removing the A/C condenser.

Fig 6: Locating A/C Condenser
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the A/C condenser in the reverse order of removal, and note these items:

If you're installing a new A/C condenser, add refrigerant oil (DENSO ND-OIL 8) (see A/C REFRIGERANT OIL REPLACEMENT ).
Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
Do not spill the refrigerant oil on the vehicle; it may damage the paint; if the refrigerant oil contacts the paint, wash it off immediately.
Be careful not to damage the radiator or the A/C condenser fins when installing the A/C condenser.
Charge the system (see SYSTEM CHARGING ).
Adjust the hood latch (see HOOD ADJUSTMENT ).
Do the millimeter wave radar aiming (see MILLIMETER WAVE RADAR AIMING ).
