Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
Detach the harness clips (A), then remove the bolts, and the glove box frame (B).

Fig 1: Locating Harness Clips, Bolts And Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown, and discard it.

Fig 2: Identifying Plastic Cross Brace Cut Mark
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Detach the wire harness clip (A), then remove the self-tapping screws, and the passenger's heater duct (B).

Fig 3: Locating Wire Harness Clip, Self-Tapping Screws And Passenger's Heater Duct
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connector (A) from the front blower motor, then detach the wire harness clips (B).

Fig 4: Locating Connector, Front Blower Motor And Wire Harness Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.

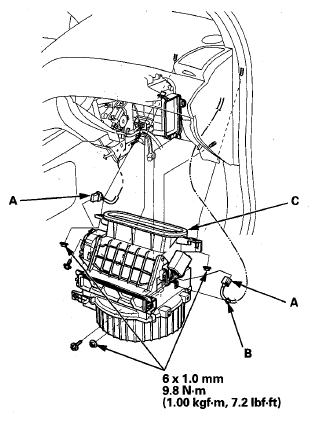

Disconnect the connectors (A) from the recirculation control motor and headlight leveling control unit, then detach the harness clip (B). Remove the self-tapping screws, the mounting nuts, and the blower unit (C).

Fig 5: Locating Connectors, Harness Clip, Self-Tapping Screws, Mounting Nuts And Blower Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
