Recirculation Control Motor Replacement: Installation

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make sure the damper lever pins in the motor lever are visible through the holes.

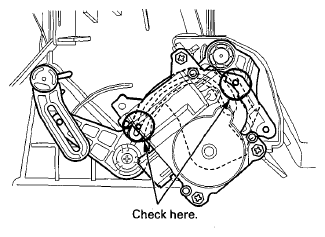

    Fig 1: Identifying Damper Lever Pins In Motor Lever
    G08058031Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. While holding the recirculation control motor (A), install the self-tapping screws and connect the 7P connector (B).
    Fig 2: Locating Recirculation Control Motor, Self-Tapping Screws And 7P Connector
    G08058032Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. After installation, make sure the motor runs smoothly.
