WITHOUT INTELLIGENT KEY: Reference Value
›
Terminal Layout
Terminal Layout

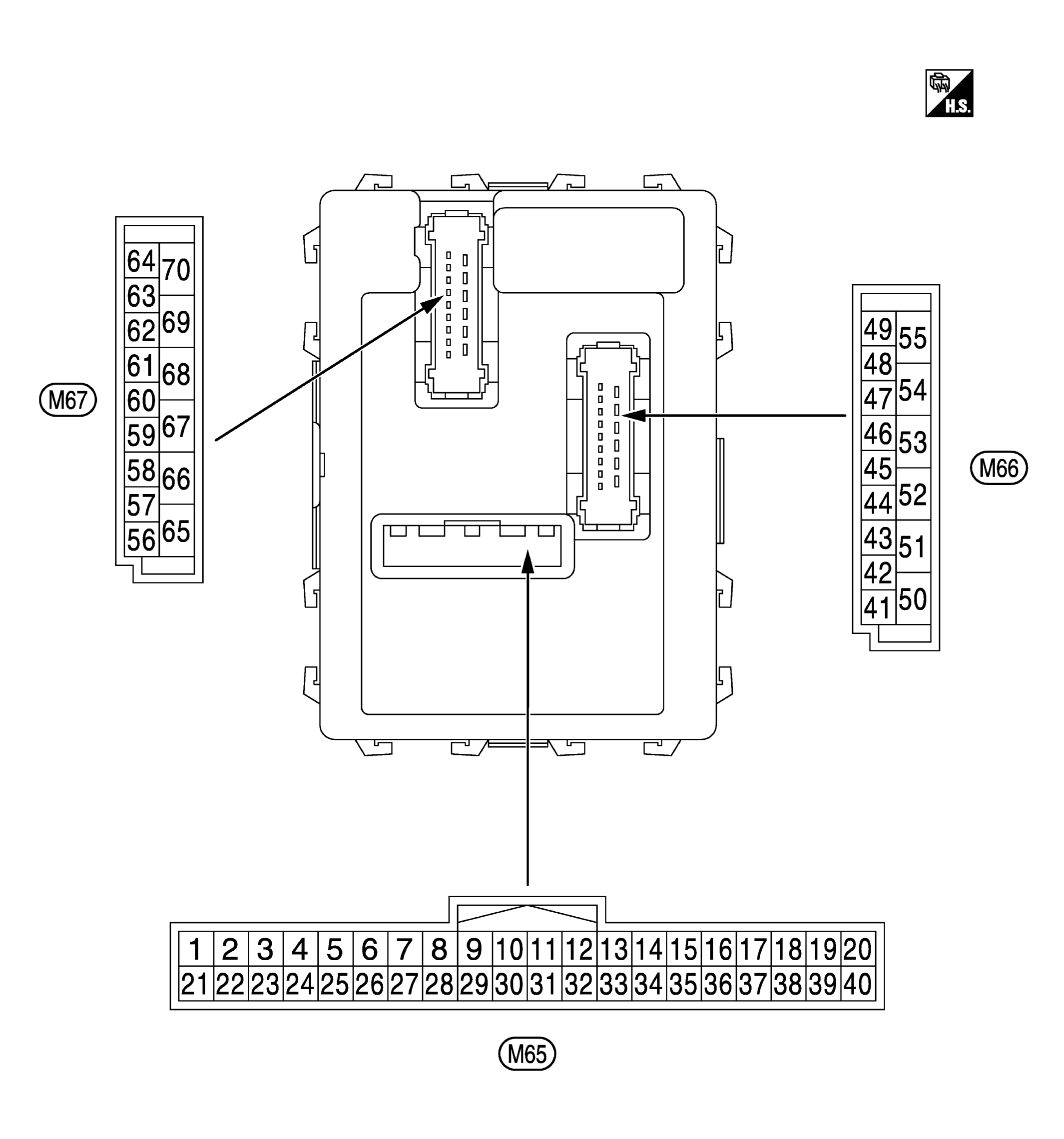

Fig 1: Identifying BCM (Body Control Module) Connector Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
M65, M66: White
M67: Black
Courtesy of NISSAN NORTH AMERICA, INC.
