Evaporative Emission Line Drawing

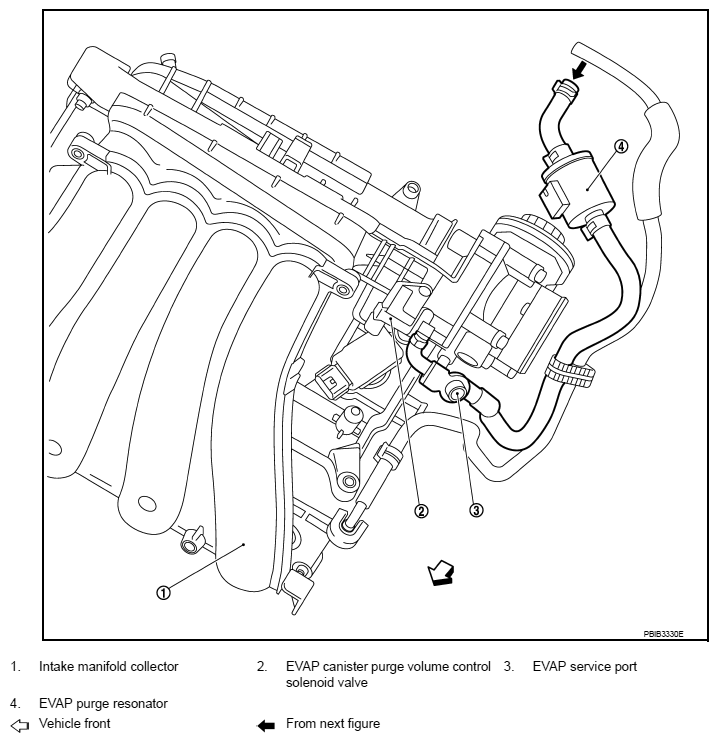

Fig 1: Identifying EVAP Purge Resonator

Courtesy of NISSAN NORTH AMERICA, INC.

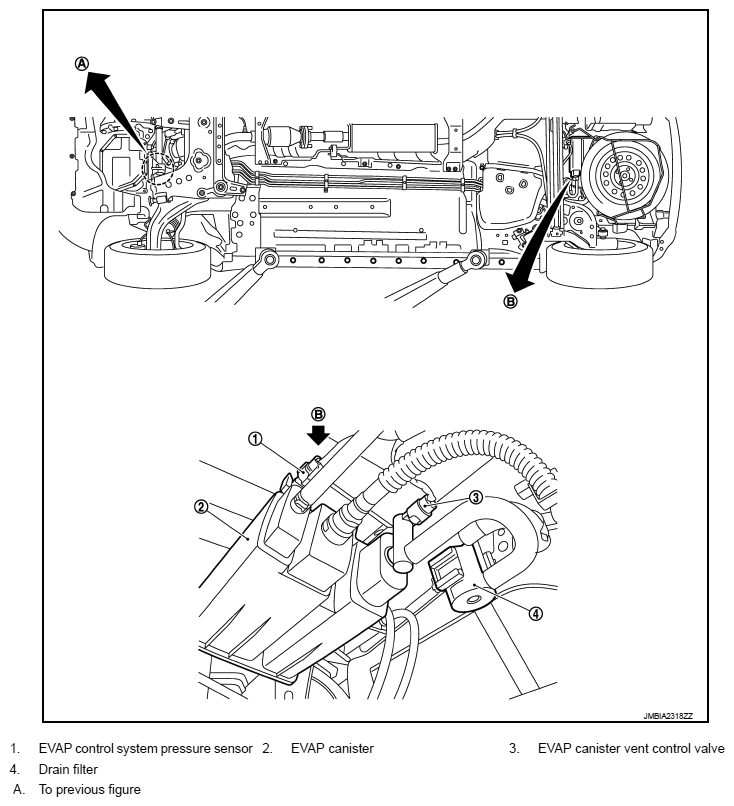

Fig 2: Identifying EVAP Canister

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
