Exploded View

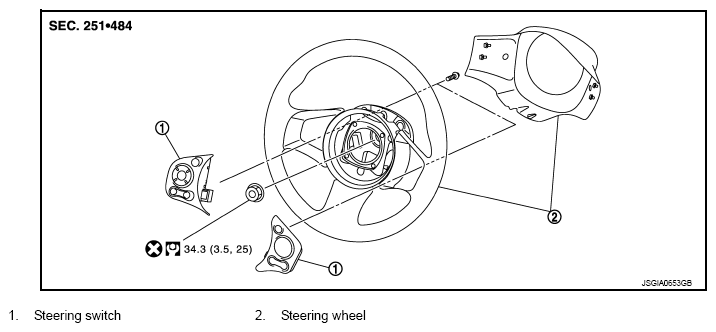

Fig 1: Exploded View Of Steering Wheel With Torque Specification

G08127168

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
