Automatic Transmission (CVT)
›
System Description
›
CVT System
›
System Diagram
System Diagram

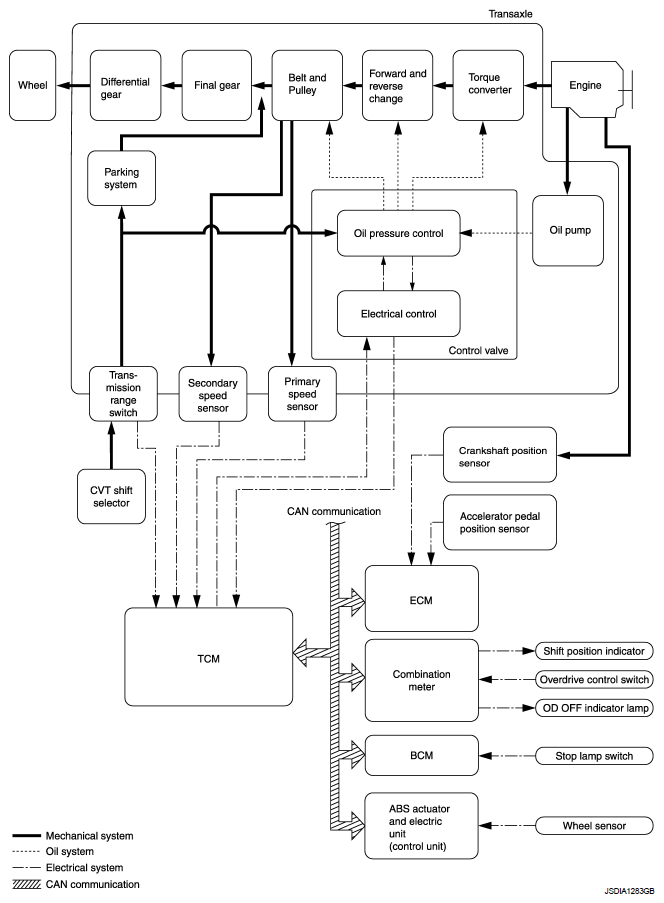

Fig 1: Identifying CVT System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
