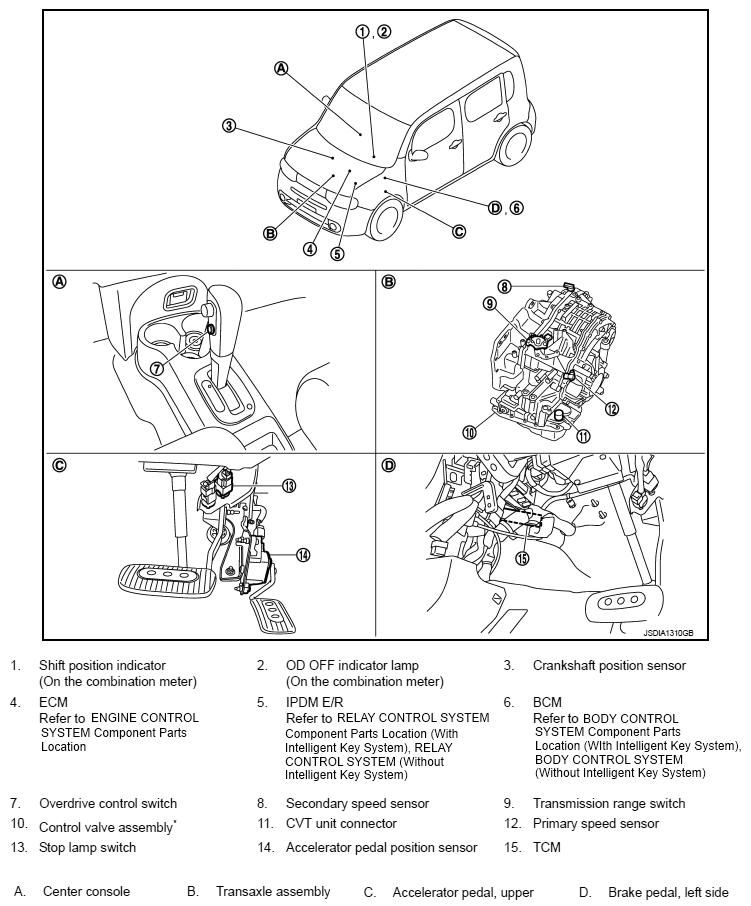

Component Parts Location
NOTE:
The following components are included in control valve assembly.
*: Control valve assembly is included in transaxle assembly.
- CVT fluid temperature sensor
- Torque converter clutch solenoid valve
- Lock-up select solenoid valve
- Line pressure solenoid valve
- Secondary pressure solenoid valve
- Secondary pressure sensor
- Step motor
- ROM assembly
*: Control valve assembly is included in transaxle assembly.
