Disassembly and Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

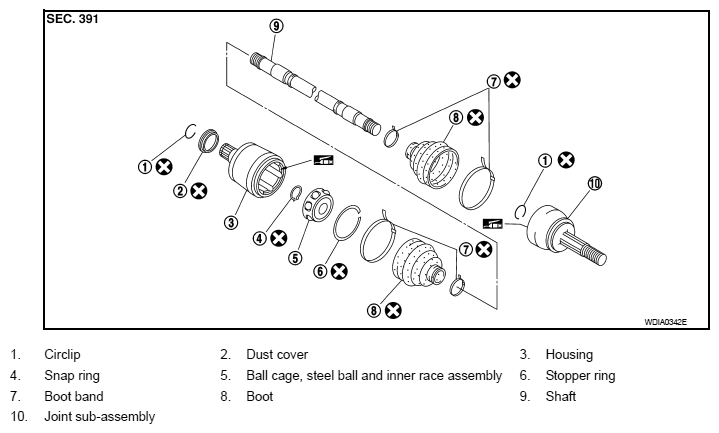

Fig 1: Disassembled View Of Drive Shaft
G08131836Courtesy of NISSAN NORTH AMERICA, INC.
