Removal and Installation: Notes

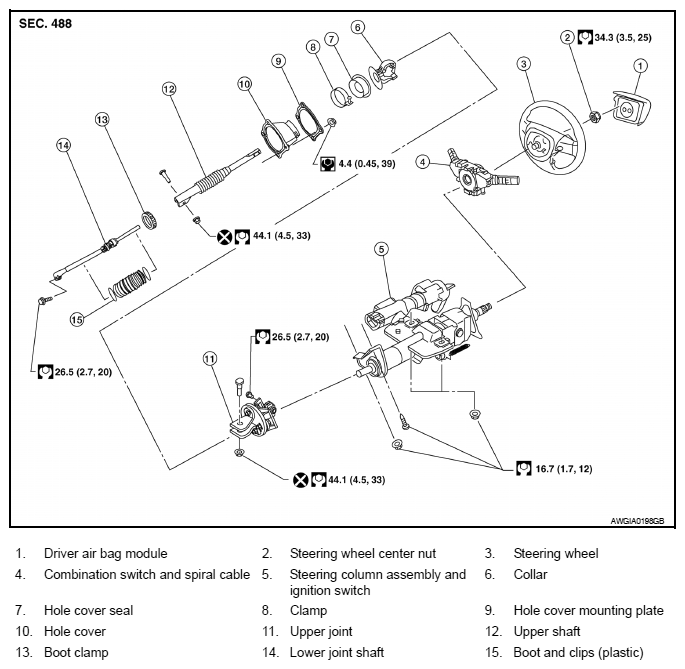

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

• Do not exert any axial load or impact to the steering column.
• Do not move the steering gear while the steering column assembly is removed.
• Any time the ignition switch has been removed or installed, the keys must be re-registered in the BCM. Refer to CONSULT Immobilizer mode and follow the on-screen instructions.
