Disassembly and Assembly: Notes

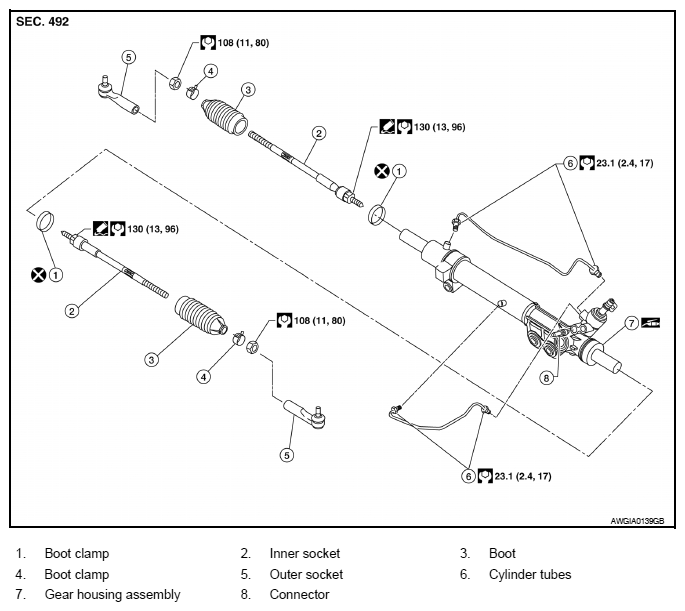

Fig 1: Identifying Steering Gear & Linkage Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

• Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from being damaged. Do not grip the cylinder with a vise.
• Before performing disassembly, clean the gear housing assembly. Be careful not to allow any cleaner to contact the discharge and return port connectors.
