Cross-Sectional View
Cross-Sectional View

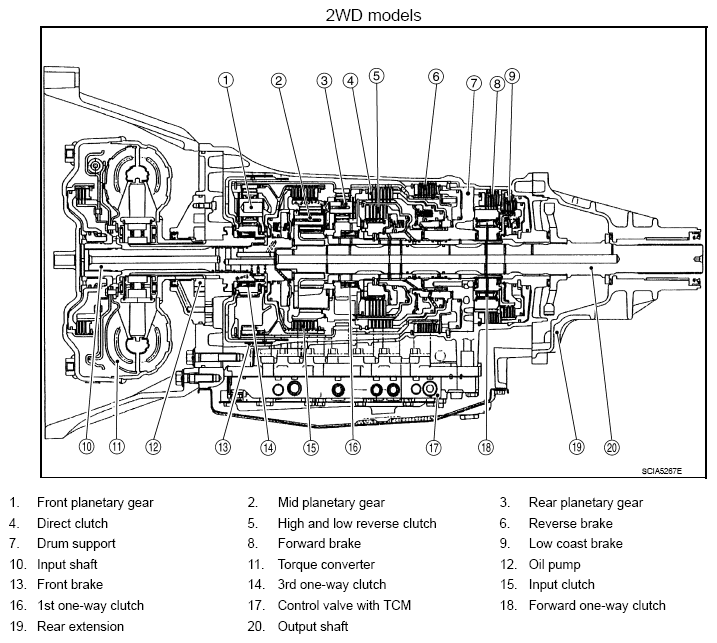

Fig 1: Cross-Section View Of A/T Control System (2WD)
Courtesy of NISSAN NORTH AMERICA, INC.

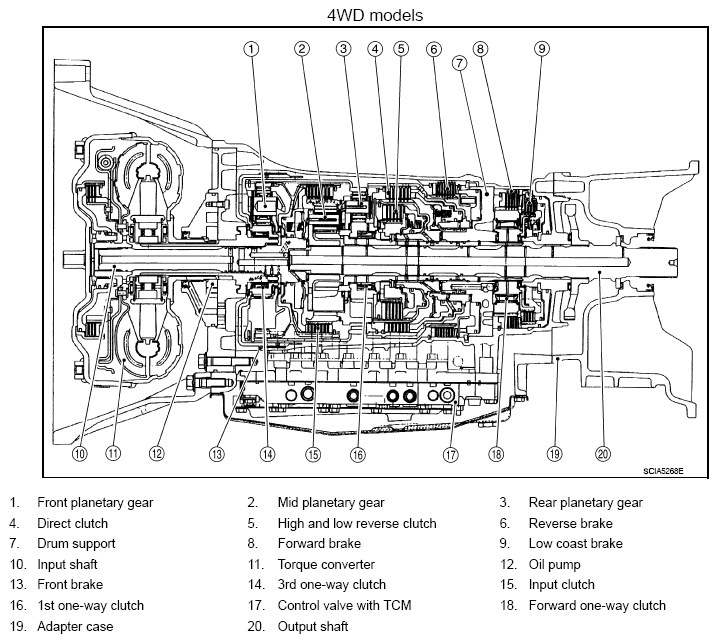

Fig 2: Cross-Section View Of A/T Control System (4WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
