Shift Mechanism: Construction

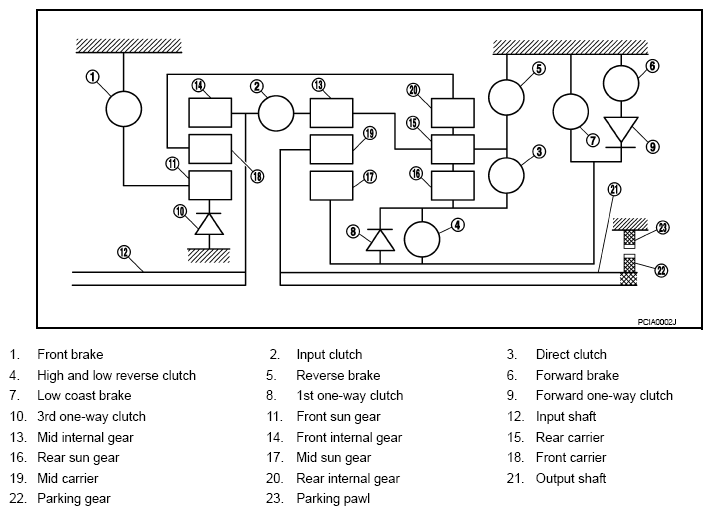

Fig 1: Identifying A/T Control System Construction Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
