Exploded View: Disassembly

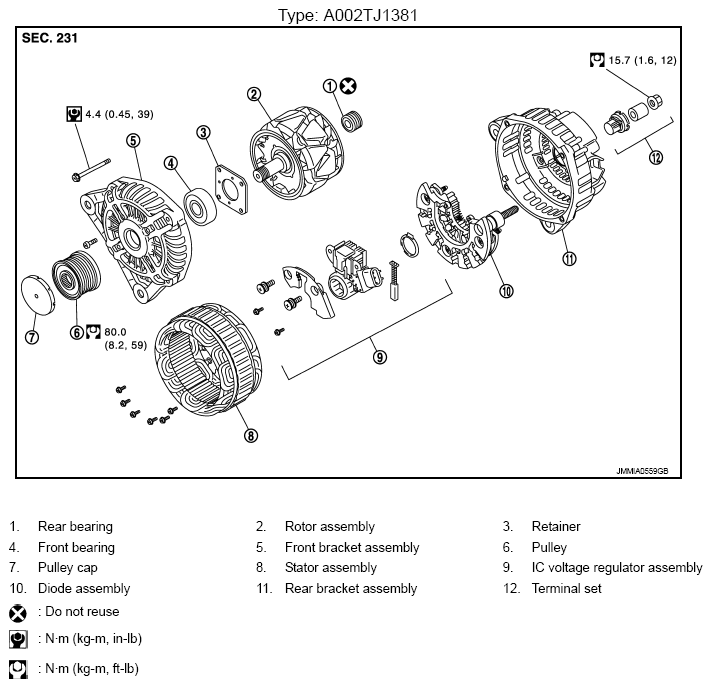

Fig 1: Disassembled View Of Alternator With Torque Specification
G08099537Courtesy of NISSAN NORTH AMERICA, INC.
