Exploded View: Removal

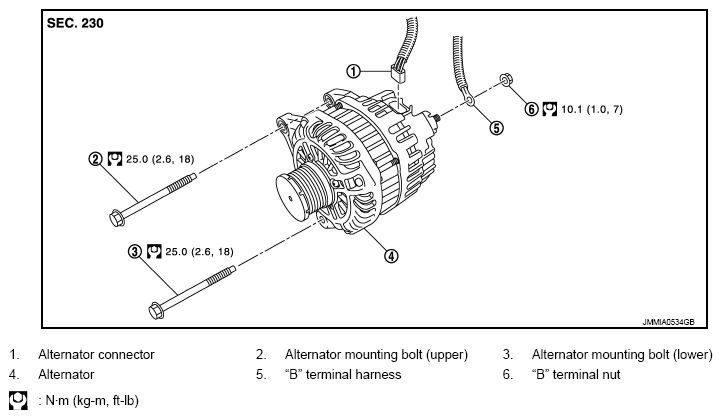

Fig 1: Exploded View Of Alternator With Torque Specification
G08099536Courtesy of NISSAN NORTH AMERICA, INC.
