Fuel Tank
›
AWD
›
AWD: Exploded View
AWD: Exploded View

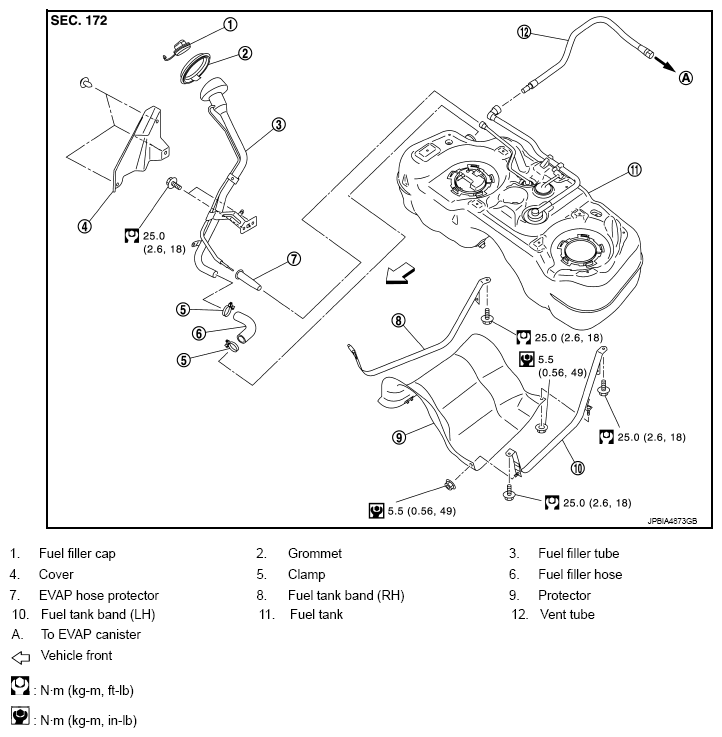

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
