Brake Control System (With VDC)
›
System Description
›
System
›
Circuit Diagram
Circuit Diagram

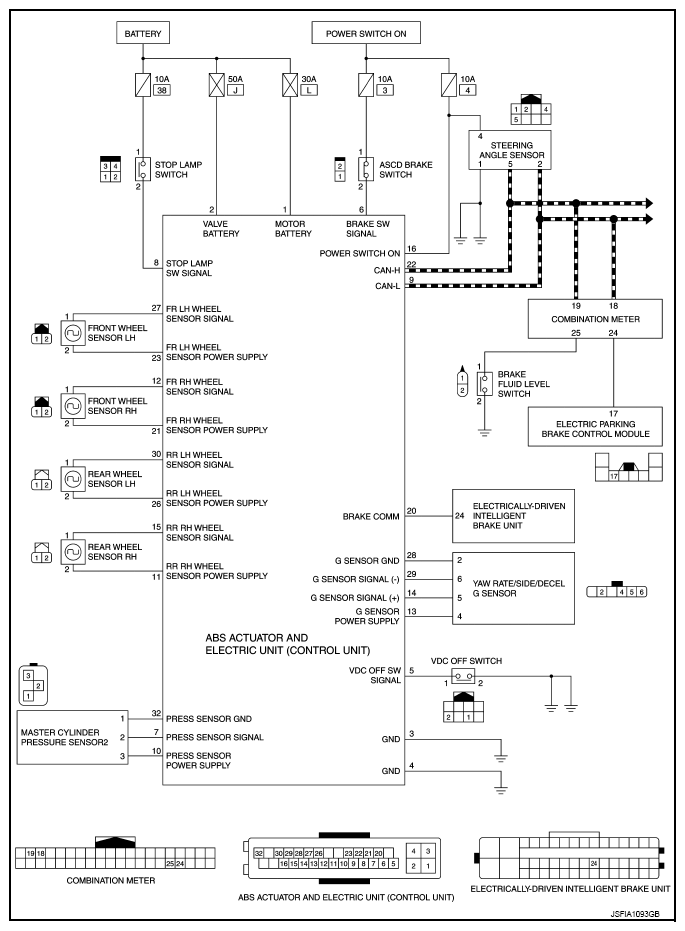

Fig 1: ABS Actuator And Electric Unit (Control Unit)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
