Component Parts Location

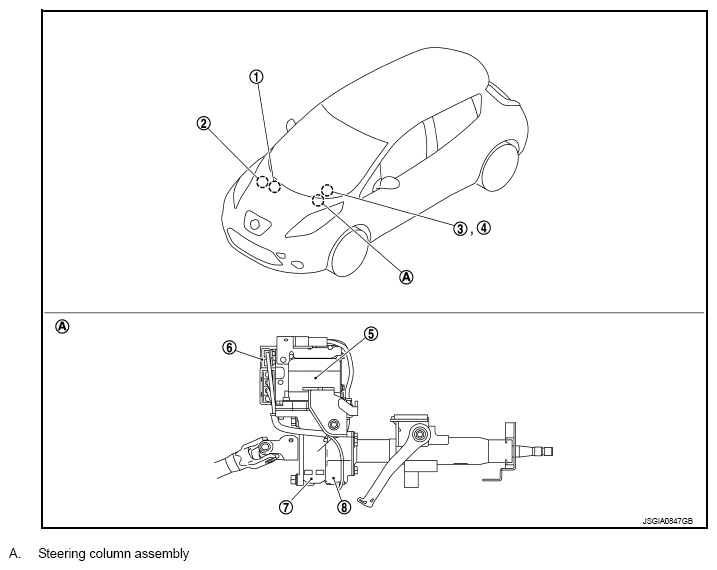

Fig 1: Identifying Steering Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1	VCM (Vehicle Control Module)	Transmits mainly the following signals to EPS control unit via CAN communication. Power steering start activation request signal Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
2	ABS actuator and electric unit (control unit)	Transmits mainly the following signal to EPS control unit via CAN communication. Vehicle speed signal Refer to "COMPONENT PARTS LOCATION " for detailed installation location.
3	Combination meter	Transmits mainly the following signal to EPS control unit via CAN communication. Vehicle speed signal Refer to "METER SYSTEM: COMPONENT PARTS LOCATION " for detailed installation location.
3	Combination meter	Turns ON the EPS warning lamp according to the signal from EPS control unit via CAN communication.
4	EPS warning lamp	"EPS SYSTEM: SYSTEM DESCRIPTION "
5	EPS motor	"EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR "
6	EPS control unit	"EPS CONTROL UNIT "
7	Reduction gear	"EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR "
8	Torque sensor	"EPS MOTOR, TORQUE SENSOR, REDUCTION GEAR "
