Power Window System: Wiring Diagram

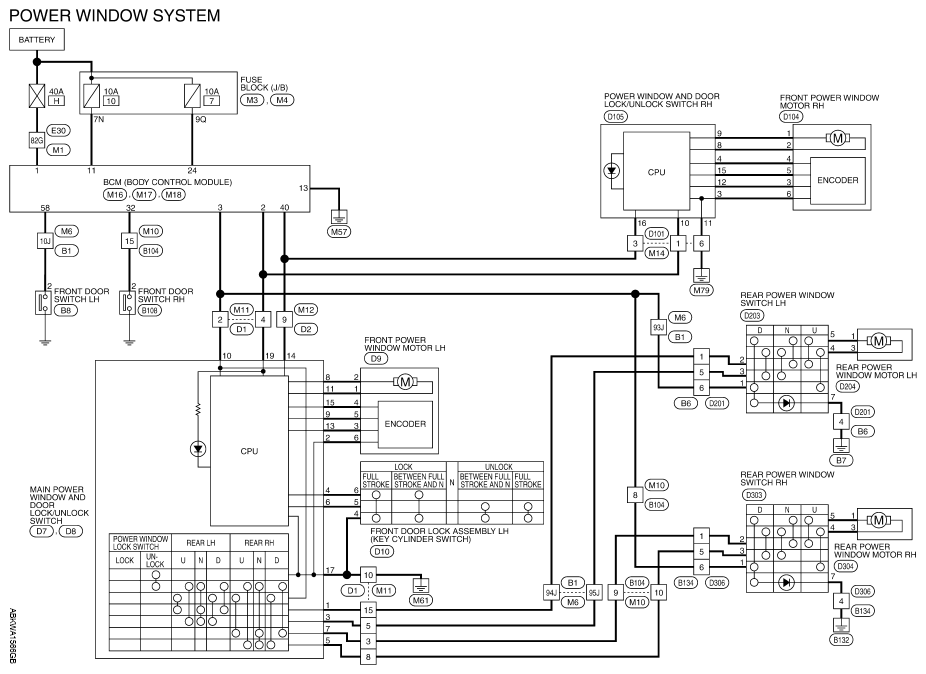

Fig 1: Power Window System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
