Nissan-Datsun
›
2012
›
Maxima S
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Power Outlet
›
Wiring Diagram
›
Power Socket
›
Control System Connector Terminal Identification
Control System Connector Terminal Identification

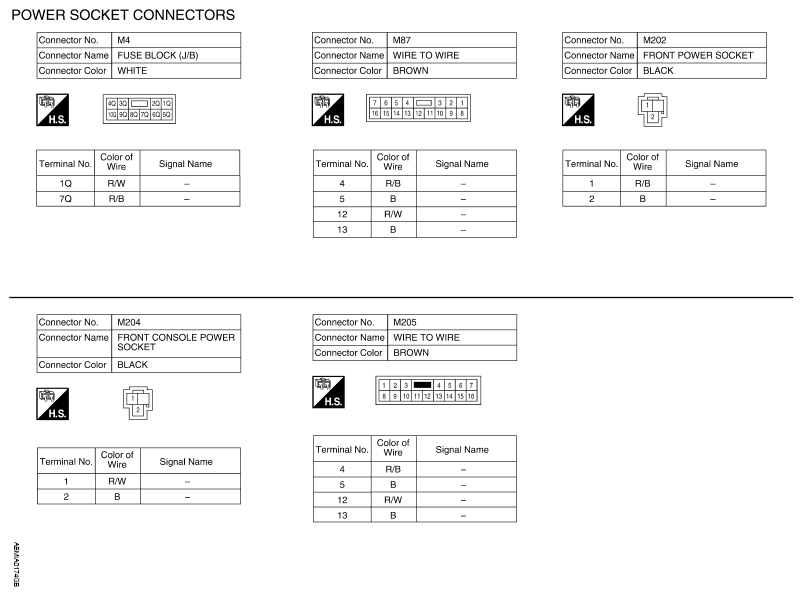

Fig 1: Identifying Power Socket Connectors Terminals
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
