Engine Control System - Introduction
›
System Description
›
Electric Ignition System
›
System Diagram
System Diagram

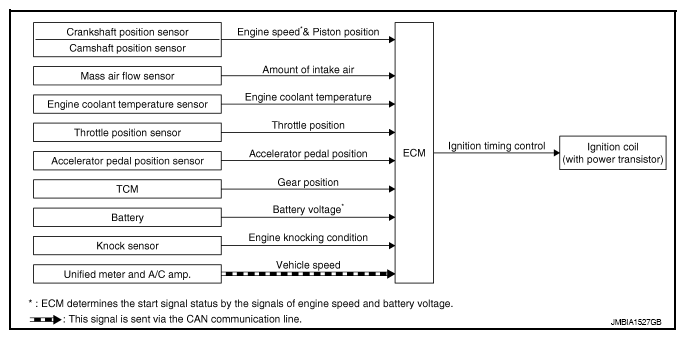

Fig 1: Electric Ignition - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
