System Description
›
CVT System
›
Component Parts Location
Component Parts Location

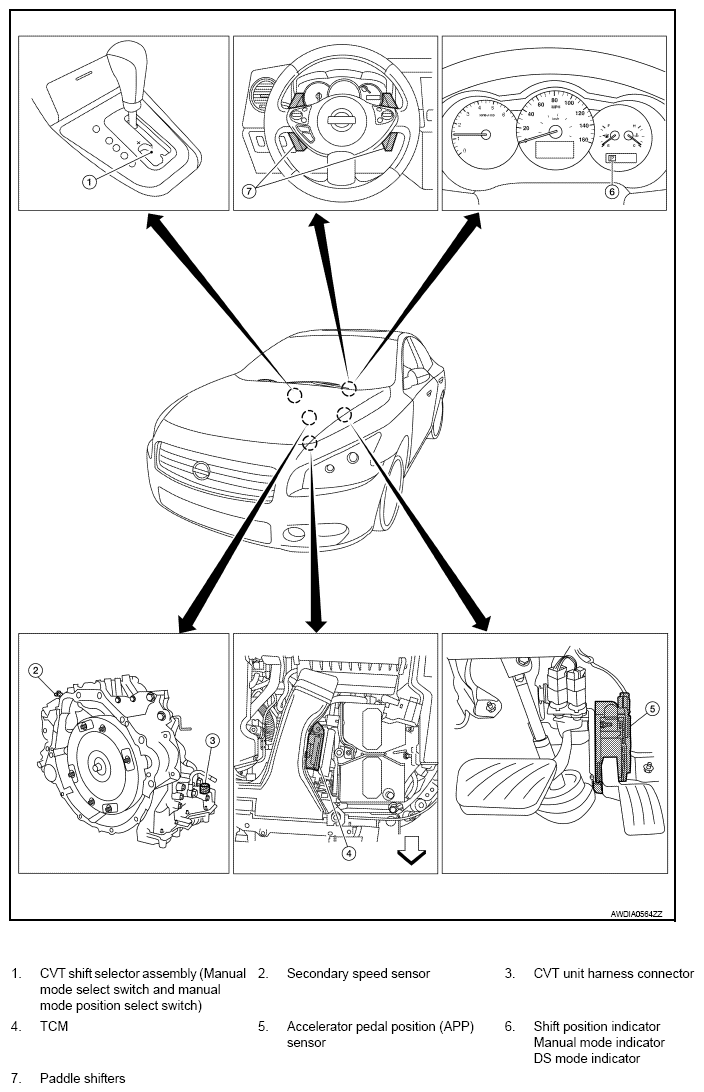

Fig 1: Identifying CVT Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
