System Description
›
Lock-Up And Select Control System
›
Component Parts Location
Component Parts Location

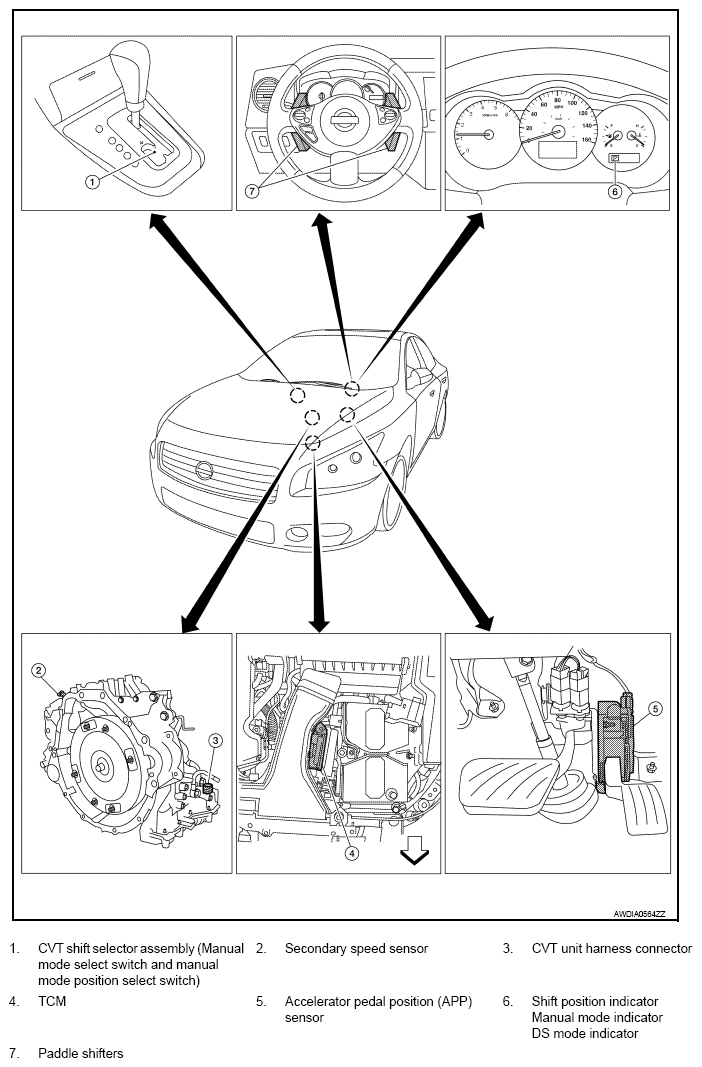

Fig 1: Identifying Lock-Up And Select Control System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
