Torque Converter: Assembly

Note the following, and install in the reverse order of removal.

• Attach the pawl (A) of the torque converter to the inner gear hole (B) on the oil pump side.
  CAUTION: Rotate the torque converter for installing torque converter.

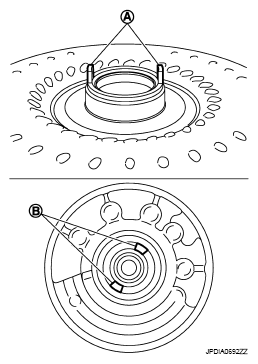

  Fig 1: Identifying Torque Converter Pawl And Inner Gear Hole (Oil Pump Side)

  Courtesy of NISSAN NORTH AMERICA, INC.
