Control System Connector Terminal Identification

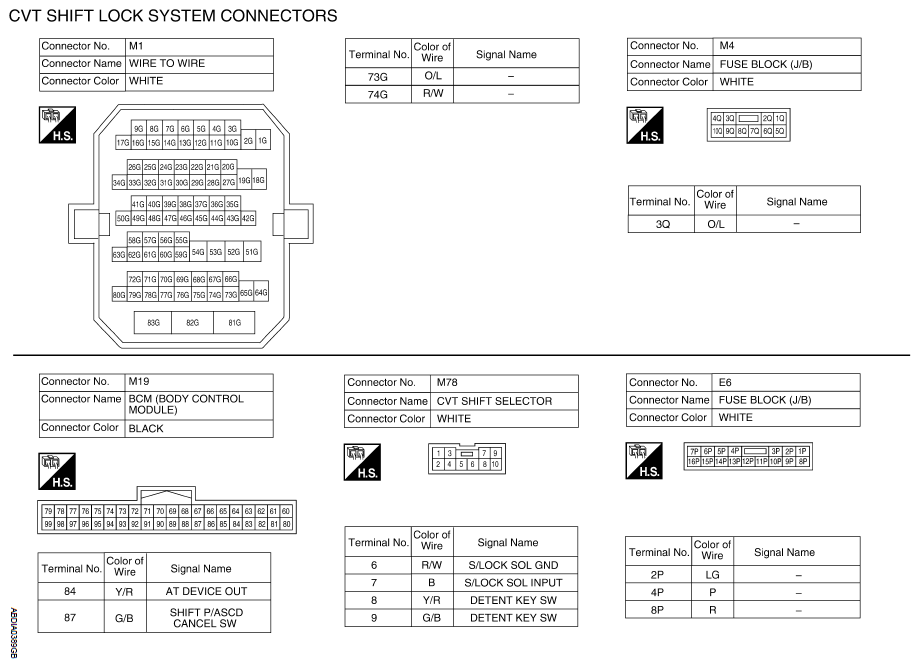

Fig 1: Identifying CVT Shift Lock System Connectors (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

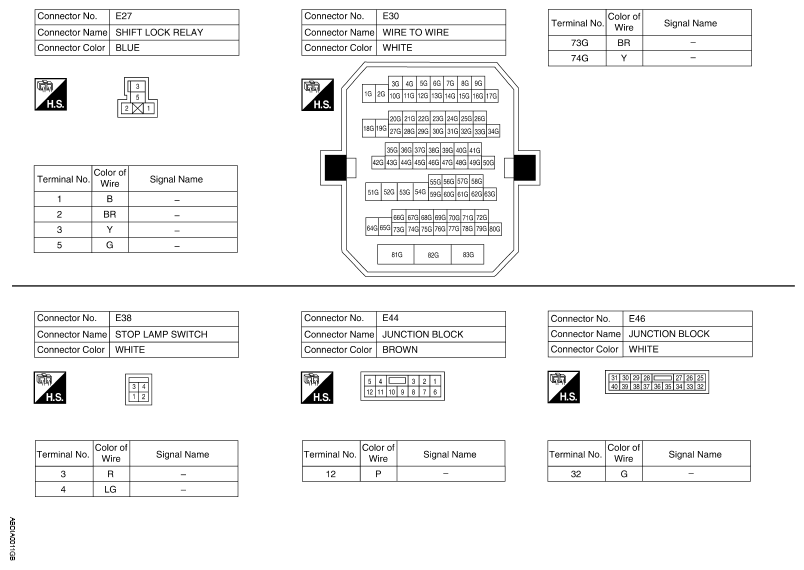

Fig 2: Identifying CVT Shift Lock System Connectors (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
