Lubrication System
›
Schematic
Lubrication System: Schematic

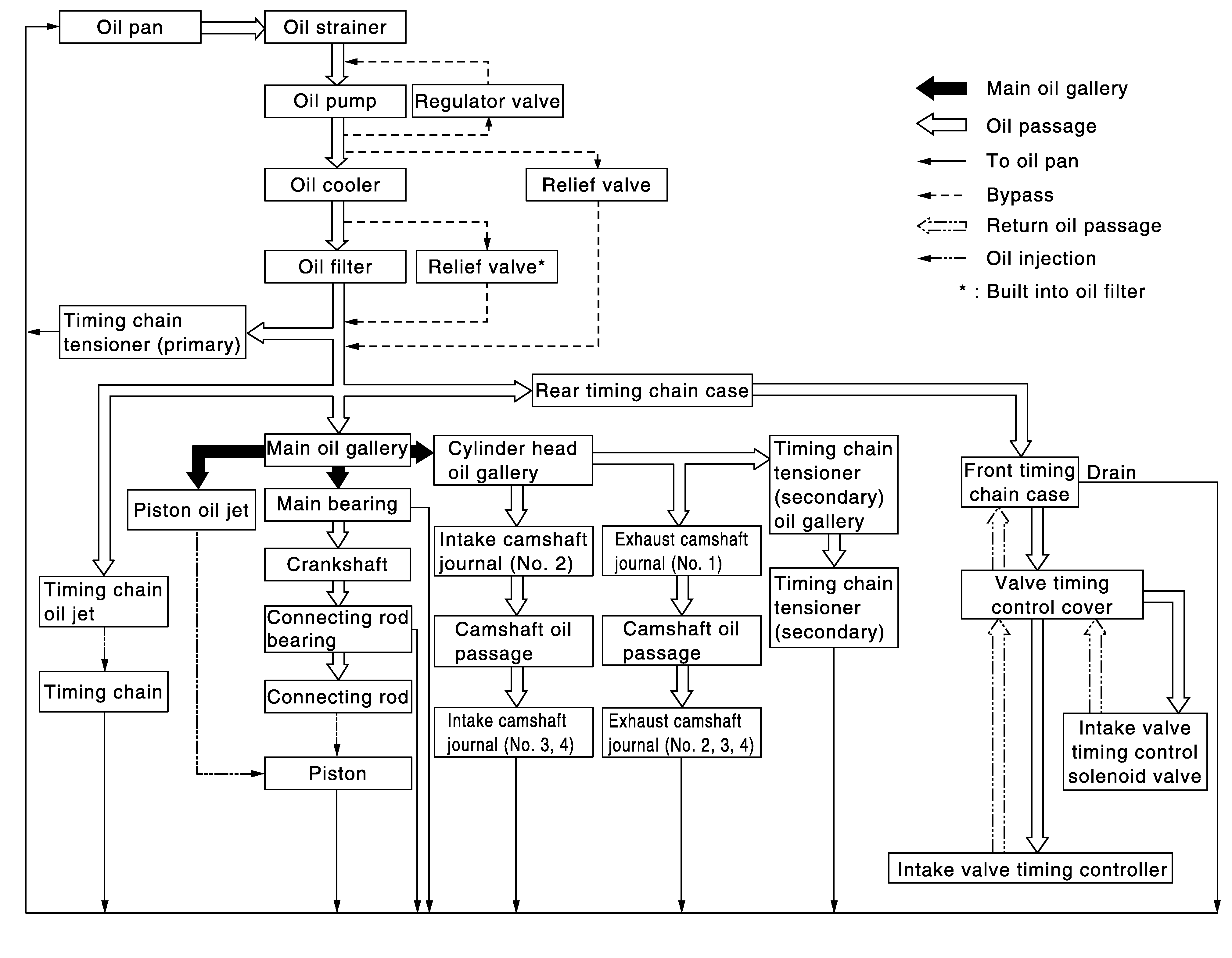

Fig 1: Lubrication System Schematic
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
