Fuel System (CROSSCABRIOLET)
›
Removal And Installation
›
Fuel Tank
›
Exploded View
Exploded View

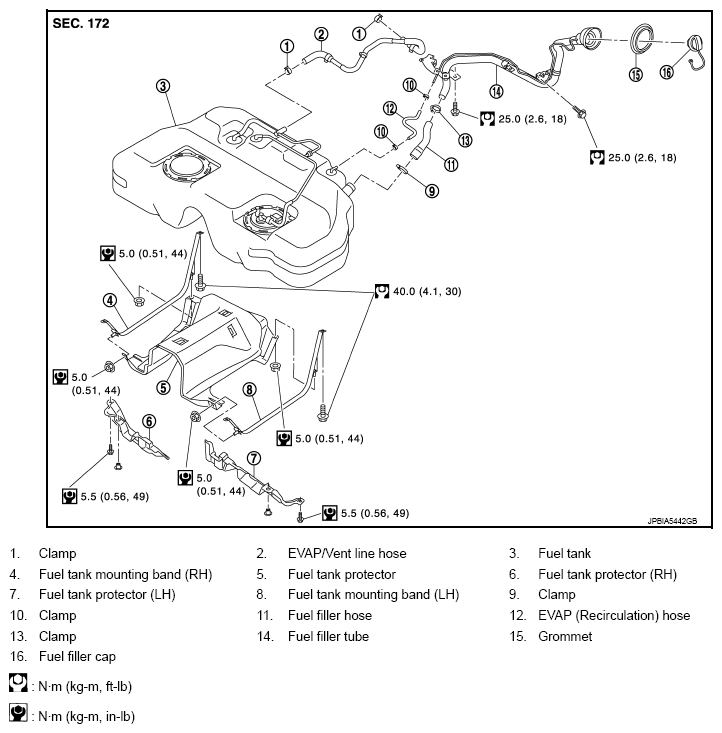

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
