System - Engine Mechanical & Other

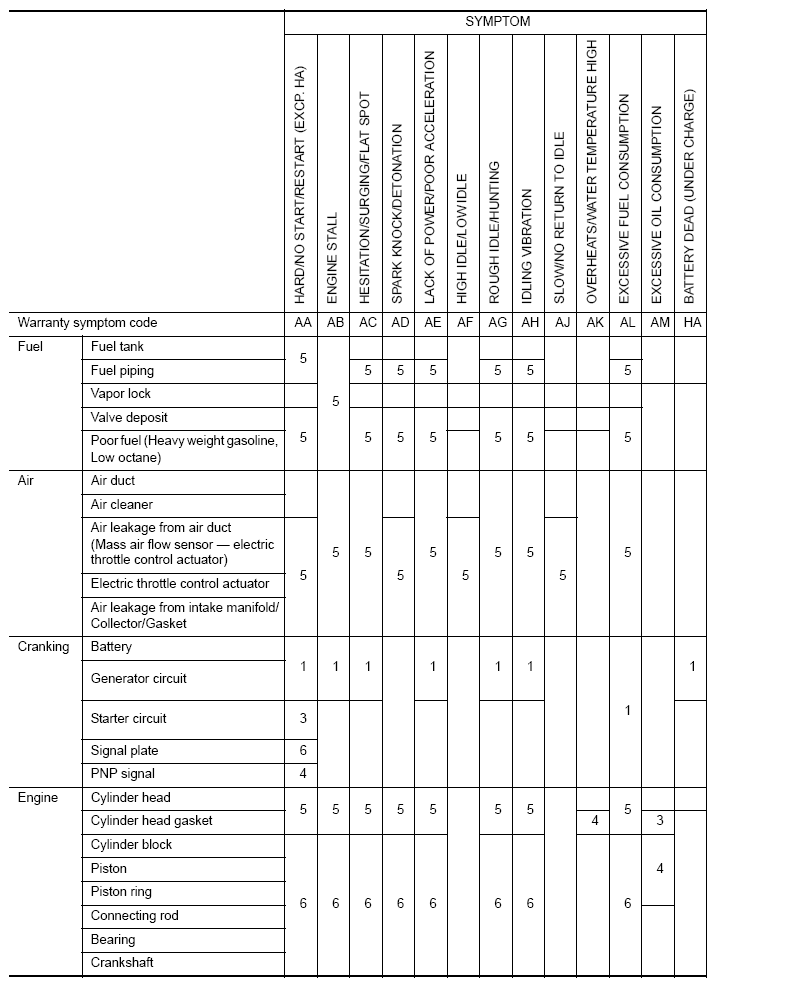

Fig 1: Mechanical Engine Control System Symptoms Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

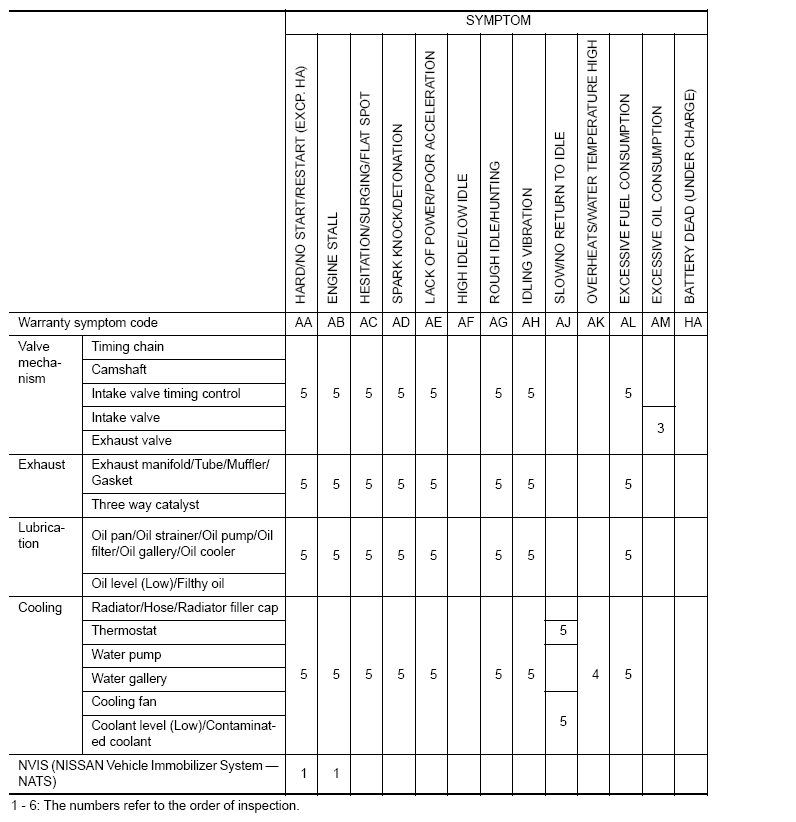

Fig 2: Mechanical Engine Control System Symptoms Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
